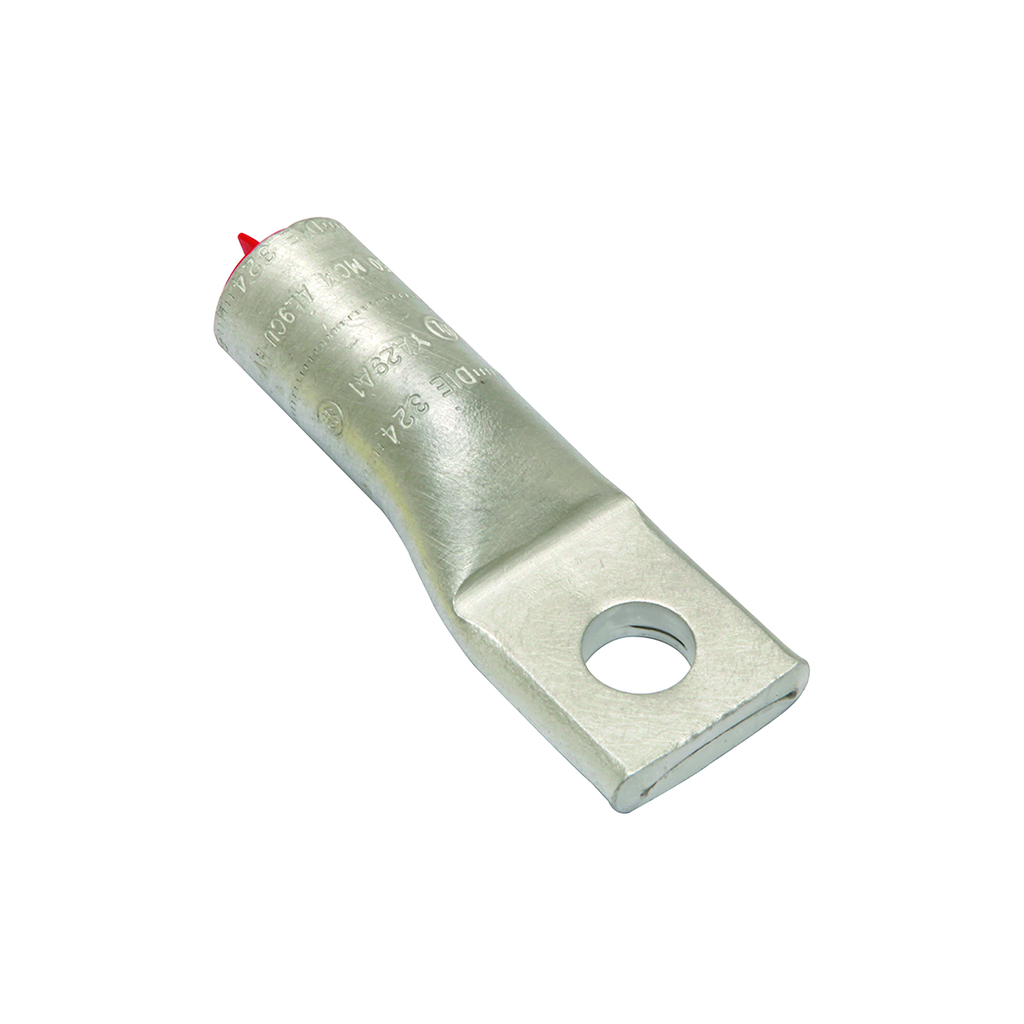

BUR YA29A1 250 AL 1-HOLE 1/2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$33.81/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA29A1
World Electric Part # 1974

Features

  • Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals Are Dual-Rated And Designed For Use On Both Aluminum And Copper Conductors From #12 Solid Through 2000 KCMIL, They Are Designed For Heavy Duty Applications To 35 KV, YA-A Terminals Are Prefilled With PENETROX, And Assembled With Color-Coded End Caps, Available With One, Two, And Four-Hole NEMA Tongues, The Aluminum HYLUG Terminals Are Designed For A Permanent Trouble-Free Electrical Termination, Manufactured From High Conductivity, Wrought Aluminum With Heavy Duty Wall Thickness: Provides Maximum Conductivity, Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Insertion, Meets UL486B 90 DEG C Requirements: Provides A Quality Electrical Dual Connection, Connector Is Clearly Marked With Wire Size, Die Index, Color-Code And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation For A Proper Compression Which Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, Factory Prefilled With PENETROX Oxide Inhibiting Compound: Oxide Inhibiting Compound Contains Homogeneously Suspended Metallic Particles To Penetrate The Wires Oxides, Establish Electrical Continuity And Forms An Airtight Connection, Color-Coded End Caps Inserted In Barrel End: Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage Plus Identifies The Proper Color-Coded Die For A Reliable Connection, UL Listed 90 DEG C, 600 V - 35 KV, Wire Strip Length: 1-5/8 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U29ART Die, (2), Y46 Tool, U29ART Die With PUADP-1 Adapter, (2), Color Code: Red, Dieless Tools (number Of Crimps): Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Die Index: 324

Specifications

  • Buy American Compliant: Yes
  • Conductor - AL Str Size: 250 kcmil
  • Conductor - AL Str Size Range: 250 kcmil
  • Conductor - Copper Str Size: 250 kcmil
  • Conductor - Copper Str Size Range: 250 kcmil
  • Country of Origin: US
  • Dimension - B Length fraction: 1-7/16 in
  • Dimension - B Length inch: 1.45 in
  • Dimension - Bolt Hole Size inch: 0.52 in
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - D inch: 1.36 in
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 90 mm
  • Dimension - Length Overall inch: 3.53 in
  • Dimension - N inch: 0.63 in
  • Dimension - Outside Diameter inch: 0.92 in
  • Dimension - Pad Width inch: 1.26 in
  • Dimension - Strip Length inch: 1-5/8
  • Dimension - Stud Size fraction: 1/2"
  • Dimension - Stud Size inch: 1/2
  • Dimension - Thread Size: 1/2
  • Dimension - Z inch: 0.73 in
  • Each - Height: 0.92 in
  • Each - Length: 3.53 in
  • Each - Width: 1.26 in
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Application: For Aluminum And Copper Conductors
  • Special Features: Features: Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals Are Dual-Rated And Designed For Use On Both Aluminum And Copper Conductors From #12 Solid Through 2000 KCMIL, They Are Designed For Heavy Duty Applications To 35 KV, YA-A Terminals Are Prefilled With PENETROX, And Assembled With Color-Coded End Caps, Available With One, Two, And Four-Hole NEMA Tongues, The Aluminum HYLUG Terminals Are Designed For A Permanent Trouble-Free Electrical Termination, Manufactured From High Conductivity, Wrought Aluminum With Heavy Duty Wall Thickness: Provides Maximum Conductivity, Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Insertion, Meets UL486B 90 DEG C Requirements: Provides A Quality Electrical Dual Connection, Connector Is Clearly Marked With Wire Size, Die Index, Color-Code And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation For A Proper Compression Which Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, Factory Prefilled With PENETROX Oxide Inhibiting Compound: Oxide Inhibiting Compound Contains Homogeneously Suspended Metallic Particles To Penetrate The Wires Oxides, Establish Electrical Continuity And Forms An Airtight Connection, Color-Coded End Caps Inserted In Barrel End: Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage Plus Identifies The Proper Color-Coded Die For A Reliable Connection, UL Listed 90 DEG C, 600 V - 35 KV, Wire Strip Length: 1-5/8 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U29ART Die, (2), Y46 Tool, U29ART Die With PUADP-1 Adapter, (2), Color Code: Red, Dieless Tools (number Of Crimps): Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Die Index: 324
  • Standard: UL 486A-486B
  • Sub Brand: HYLUG
  • Type: YA-A, Dual Rated
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/YA29A1_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/YA29A1_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/YA29A1_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181075510
Product Description 250 kcmil, AL Terminal, One Hole, 1/2", Stud Size, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX, End Cap, UL/CSA, 90C, Up to 35kV, Red Color Code, 324 Die Index.
GTiN 00781810755105
Type Dual-Rated, Short Sleeve, Round/Sector Shaped
Material Aluminum
Stud Size 1/2 in
Number of Holes 1 Hole
Applications For Aluminum And Copper Conductors
Cable Size 250 KCMIL
Family Brand Name Burndy
Sub Brand Hylug
Length 3.53 in
Finish Electro Tin Plated
Hole Size 14 mm
Barrel Type Internally Bevelled
Conductor Size 250 kcmil
Connection Type Terminal
Plating Type Tin - Electro Plated
Temperature Rating 90 C
Plated? Yes
CSA No
Max Voltage 35000 V
Color Coding Red
Used With Aluminum and Copper Conductors
