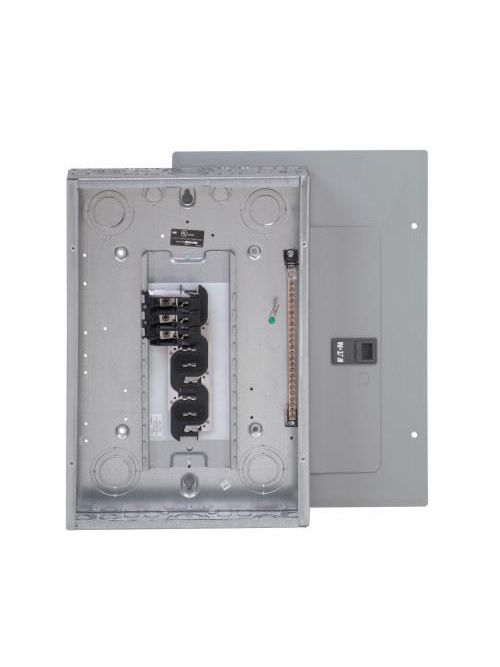

Eaton Electrical 3BR1224L125 208 Star/120/240 VAC 125 Amp 3-Phase 4-Wire 1 Inch Main Lug Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$198.95/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # 3BR1224L125
World Electric Part # 1386

Specifications

  • Height: 21 IN
  • Special Features: No feed-thru lugs, includes BREQS125 hold-down screw
  • Notes: Suitable for use as service equipment when no more than 6 main disconnecting means are provided or when not used as lighting & appliance panelboard. Has notch for brhdk125 hold-down kit.
  • Type: Main lug
  • Length: 3.88 IN
  • Width: 14.31 IN
  • Amperage Rating: 125A
  • Box Size: C1
  • Bus Material: Aluminum
  • Cover: Cover included
  • Enclosure: NEMA 1
  • Enclosure Material: Metallic
  • Interrupt Rating: 10 kAIC
  • Main Circuit Breaker: BR
  • Mounting: Combination
  • Number Of Circuits: 24
  • Number Of Spaces: 12
  • Number Of Wires: Four-wire
  • Phase: Three-phase
  • Used With: Type BR 1-inch breakers
  • Voltage Rating: 208Y/120, 240V
  • Wire Size: #6-2/0 AWG Cu/Al

Warranties

  • 10 year

Certifications

  • UL 67
  • UL 50

Overview

UPC 78667644140
Product Description BR style 1-inch commercial loadcenter, main lug, no feed-thru lugs, includes BREQS125 hold-down screw, 125A, three-phase, 24 circuits, 12 spaces, 208Y/120 or 240V, #6-2/0 AWG Cu/Al at 60C or 75C wire
GTiN 00786676441407
Length 3.88 in
Width 14.31 in
Size C1
Voltage 240 Volt
Type Main Lug
Mounting Type Combination
Height 21 in
Wire Size 6-00 AWG
Family Brand Name Eaton
NEMA 1
Number of Phases 3 Phase
Amperage 125 Amp
Blade Dimensions 3.8800 IN X 14.3100 IN X 21.0000 IN
Cover Type Cover included
Number of Circuits 24
Enclosure Material Metallic
Number of Spaces 12
Bus Material Aluminum
Number of Wires 4
Interrupt Rating 10 kA
Enclosure NEMA 1
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
