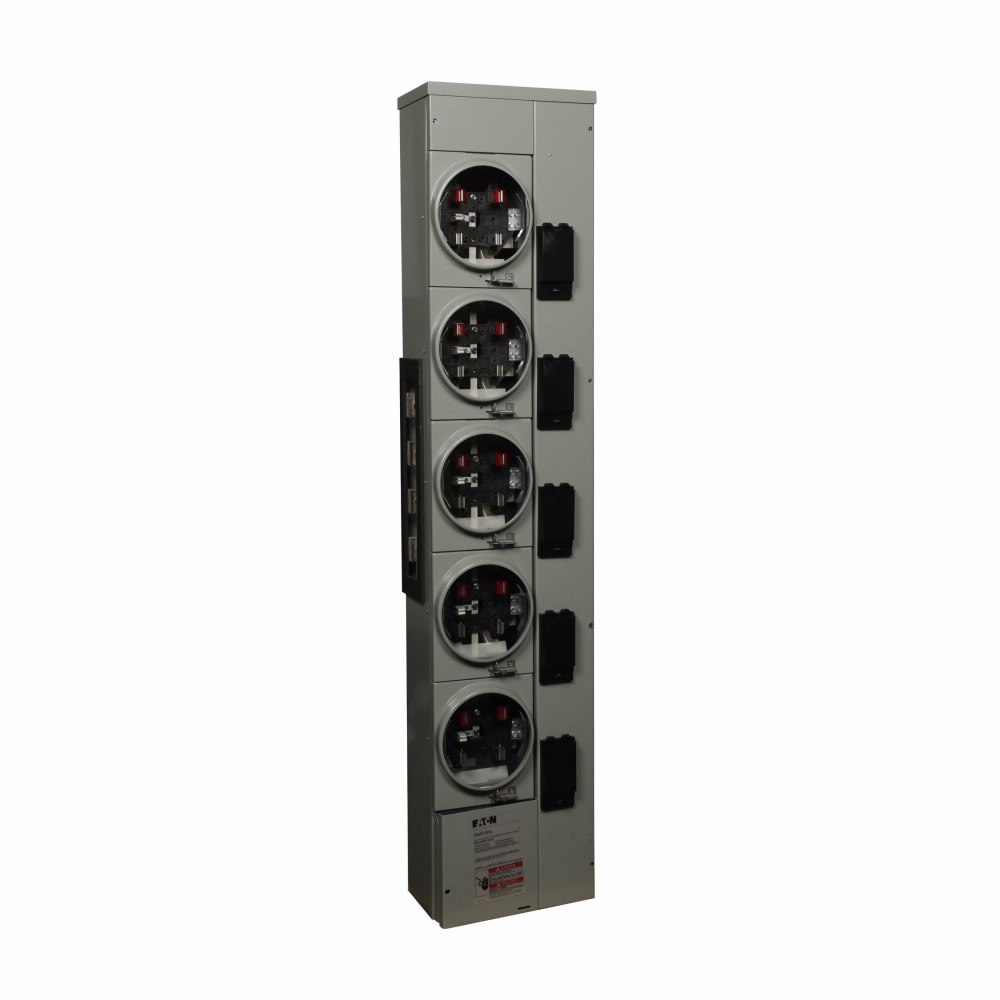

Eaton Electrical 3MM512RRL 208 Star/120 VAC 125 Amp 3-Phase 4-Wire 5-Socket Aluminum Ringless Meter Stack Module
Product image thumbnail 0
Product image thumbnail 1
$1,072.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # 3MM512RRL
World Electric Part # 952

Specifications

  • Interrupt rating: Depends on selected main circuit breaker
  • Utility Approvals: ME : Central Maine Power
  • Phase: Three-phase in, single-phase out
  • Bus Material: Aluminum
  • Number Of Jaws: Five-jaw
  • Enclosure: Indoor/outdoor
  • Phase Balance: A-B
  • Security: Ringless
  • Amperage Rating: 125A
  • Secondary Circuit Breaker: BR2_, BRH2_, BRHH2_
  • Type: Group Metering
  • Number Of Sockets: 5
  • Bypass: None
  • Bus Rating: 800 A
  • Voltage Rating: 120/208V

General

  • UPC: 786849052164
  • Product Length/Depth: 60 IN
  • Product Height: 8 IN
  • Product Width: 15 IN
  • Product Weight: 64.75 LB
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Certifications: UL Listed

Overview

UPC 78684905216
Product Description Eaton residential meter stack, Group Metering Type, 125A, Aluminum Bus 800 Ampere, No bypass, Indoor/outdoor, Five-jaws, 5 Sockets, Three-phase in, single-phase out, Ringless Security, 120/208V
GTiN 00786849052164
Length 60 in
Voltage 120/208 Volt
Type Group Metering
Height 8 in
Weight 64.75 lb
Family Brand Name Eaton
Number of Phases 3,1
Enclosure Type Indoor/Outdoor
Amperage 125 Amp
Blade Dimensions 60.0000 IN X 15.0000 IN X 8.0000 IN
Bus Material Aluminum
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
