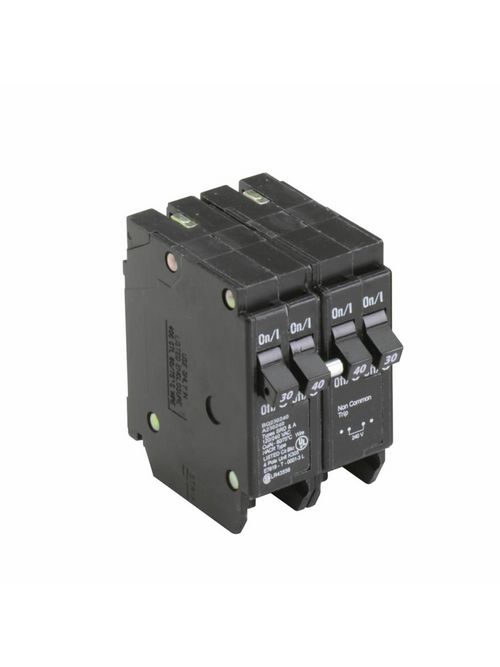

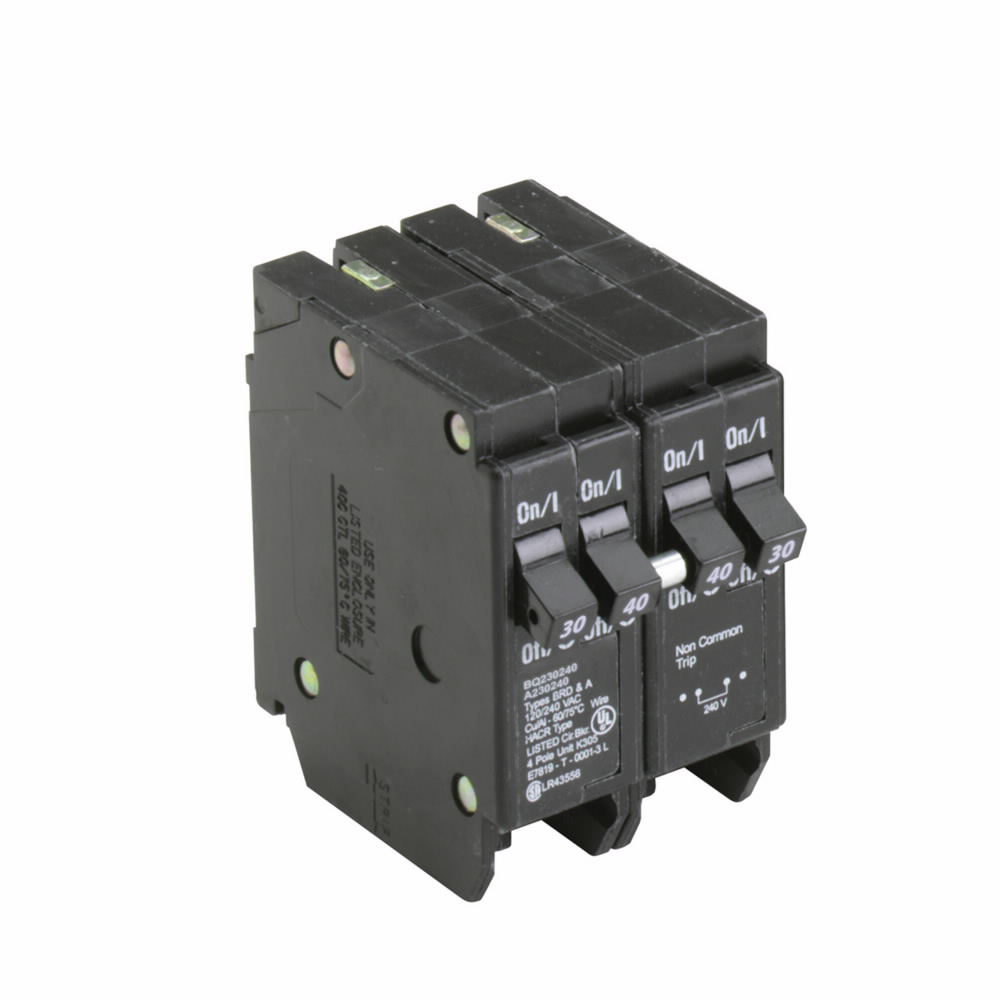

Eaton Electrical BQ230240 1 Inch CTL Class Type BQ Plug-On Circuit Breaker
$60.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # BQ230240
World Electric Part # 784

Specifications

  • Special Features: Includes rejection tab feature
  • Interrupt Rating: 10 kAIC
  • Wire Size: #14-4 AWG Cu/Al
  • Main Circuit Breaker: BQ
  • Quantity: Q28
  • Mounting Method: Plug-on
  • Amperage Rating: (1) Two-Pole 30A, (1) Two-Pole 40A
  • Number Of Poles: Four-pole
  • Type: Type BQ 1-Inch CTL plug-on circuit breaker
  • Circuit Breaker Type: BQ
  • Used With: Type BR Loadcenters
  • Voltage Rating: 120/240 V
  • Trip Type: Independent

General

  • UPC: 786676371056
  • Product Length/Depth: 3.5 IN
  • Product Height: 3.1 IN
  • Product Width: 2.5 IN
  • Product Weight: 2.5 LB
  • Compliances: Federal Specifications Classification W-C375
  • Certifications: UL 489
  • Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.

Overview

UPC 78667637105
Product Description Eaton BR thermal magnetic circuit breaker,Type BQ 1-Inch CTL plug-on circuit breaker,Includes rejection tab feature,(1) Two-Pole 30 A, (1) Two-Pole 40 A,10 kAIC,Four-pole,120/240V,BQ,Independent,#14-4 AWG Cu/Al,Q28,BQ,Type BR Loadcenters
GTiN 00786676371056
Length 3.5 in
Voltage 120/240 Volt
Type Type BQ 1-Inch CTL Plug-on Circuit Breaker
Mounting Type Plug-On
Height 3.1 in
Weight 2.5 lb
Wire Size 14-4 AWG
Family Brand Name Eaton
Circuit Breaker Type BQ
Amperage 40 Amp
Trip Type Independent
Number of Poles 4 Pole
Interrupt Rating 10 kA
Blade Dimensions 3.5000 IN X 2.5000 IN X 3.1000 IN
