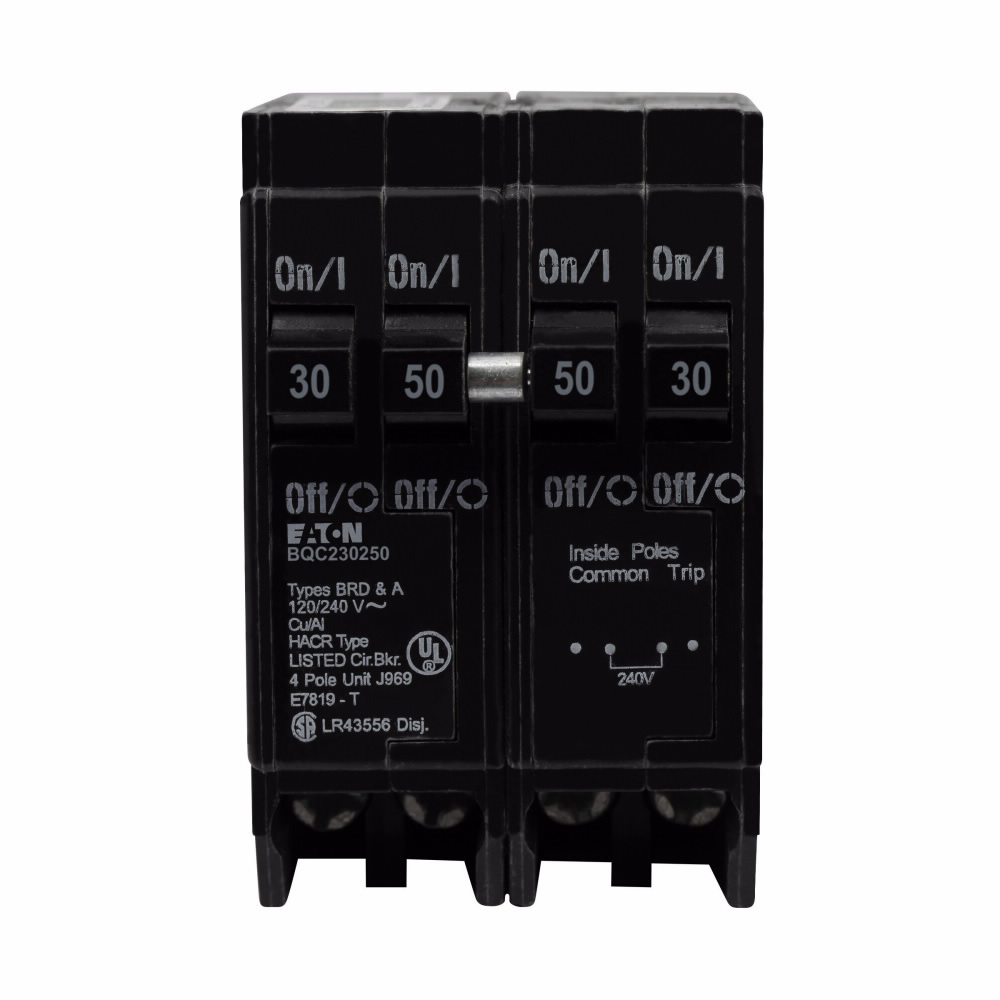

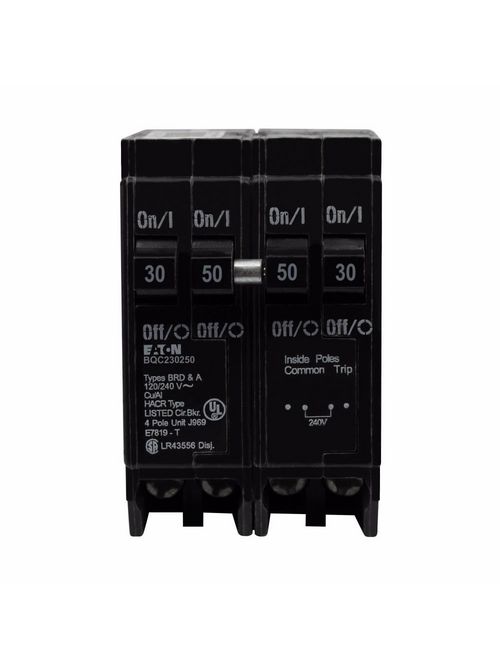

Eaton Electrical BQC230250 1 Inch CTL Class Type BQC Plug-On Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # BQC230250
World Electric Part # 867


  • Special Features: Includes rejection tab feature
  • Interrupt Rating: 10 kAIC
  • Type: Type BQC 1-Inch CTL plug-on circuit breaker
  • Wire Size: #14-4 AWG Cu/Al
  • Circuit Breaker Type: BQ
  • Used With: Type BR Loadcenters
  • Main Circuit Breaker: BQC
  • Mounting Method: Plug-on
  • Voltage Rating: 120/240 V
  • Amperage Rating: (1) Two-Pole 30A, (1) Two-Pole 50A
  • Trip Type: Common breaker trip
  • Number Of Poles: Four-pole


  • UPC: 786676371919
  • Product Length/Depth: 2 IN
  • Product Height: 2.6 IN
  • Product Width: 3.1 IN
  • Product Weight: .75 LB
  • Compliances: Federal Specifications Classification W-C375
  • Certifications: UL 489
  • Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.


UPC 78667637191
Product Description Eaton BR thermal magnetic circuit breaker,Type BQC 1-Inch CTL plug-on circuit breaker,Includes rejection tab feature,(1) Two-Pole 30 A, (1) Two-Pole 50 A,10 kAIC,Four-pole,120/240V,BQC,Common breaker trip,#14-4 AWG Cu/Al,BQC
GTiN 00786676371919
Length 2 in
Width 3.1 in
Type Type BQC 1-Inch CTL Plug-on Circuit Breaker
Height 2.6 in
Weight .75 lb
Wire Size 14-4 AWG
Family Brand Name Eaton
Circuit Breaker Type BQ
Amperage 30 Amp
Trip Type Common Breaker Trip
Number of Poles 4 Pole
Interrupt Rating 10 kA
Voltage 120/240 Volt
Blade Dimensions 2.0000 IN X 3.1000 IN X 2.6000 IN
Mounting Type Plug-On
