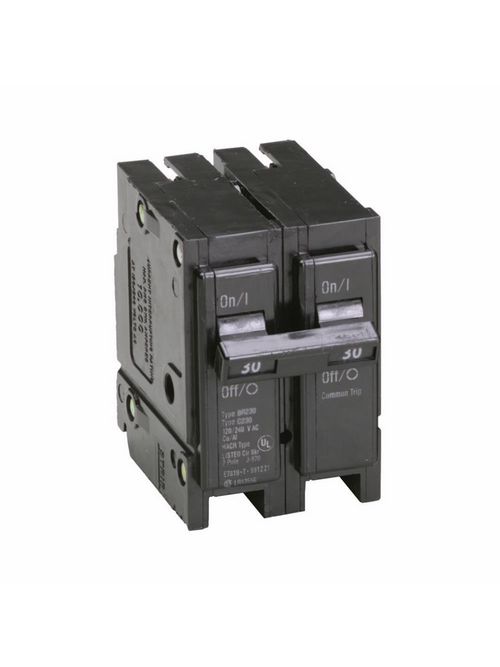

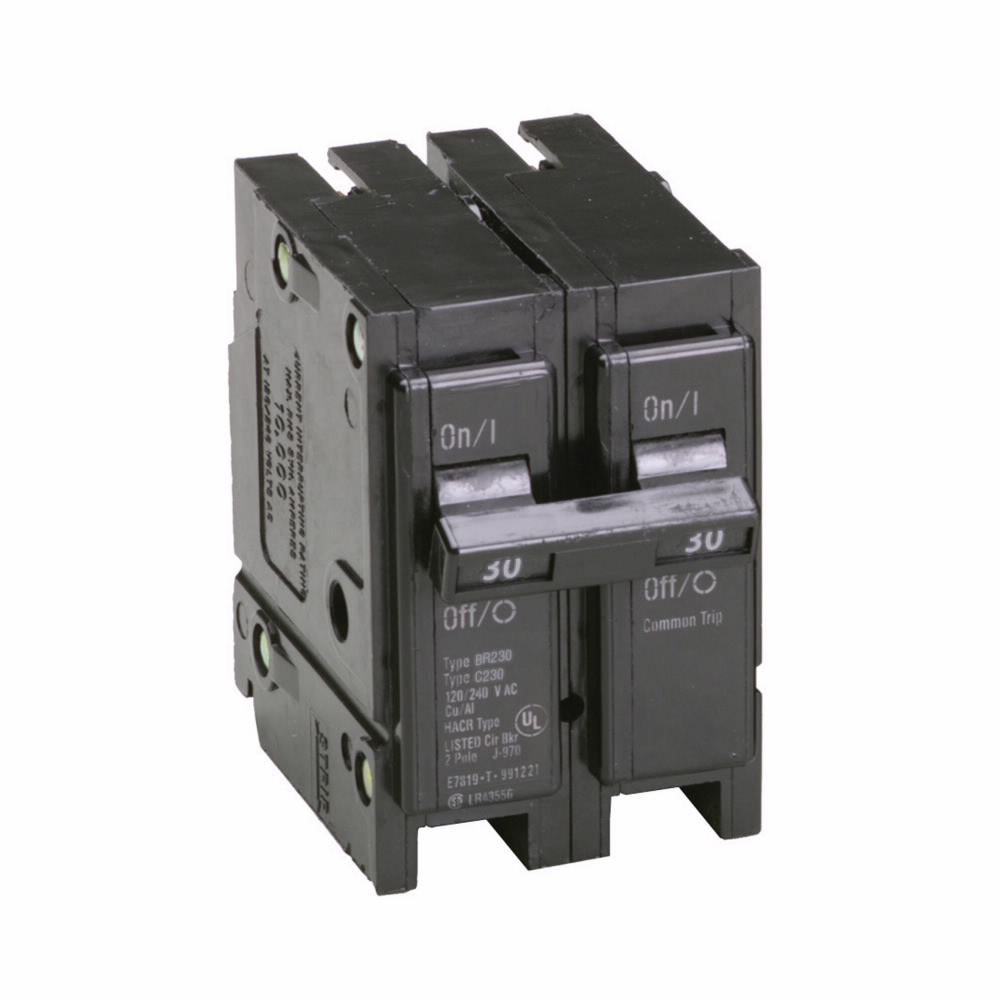

Eaton Electrical BR230 1 Inch Type BR Plug-On Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$11.97/ea
Usually ships within 49 to 81 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # BR230
World Electric Part # 915

Specifications

  • Interrupt Rating: 10 kAIC
  • Type: Type BR 1-Inch plug-on circuit breaker
  • Wire Size: #14-4 AWG Cu/Al
  • Circuit Breaker Type: BR
  • Used With: Type BR Loadcenters
  • Main Circuit Breaker: BR
  • Quantity: Q28
  • Mounting Method: Plug-on
  • Voltage Rating: 120/240 V
  • Trip Type: Common breaker trip
  • Number Of Poles: Two-pole

General

  • UPC: 786676362955
  • Product Length/Depth: 1.9 IN
  • Product Height: 2.5 IN
  • Product Width: 2.9 IN
  • Product Weight: .65 LB
  • Compliances: Federal Specifications Classification W-C375
  • Certifications: UL 489

Categories

Overview

UPC 78667636295
Product Description Eaton BR Thermal magnetic circuit breaker, Type BR 1-Inch plug-on circuit breaker, 30 A, 10 kAIC, Two-pole, 120/240V, BR, Common breaker trip, #14-4 AWG Cu/Al, Q28, BR, Type BR Loadcenters
GTiN 00786676362955
Length 1.9 in
Color Black
Type Type BR
Height 2.5 in
Weight .65 lb
Wire Size 14-4 AWG
Family Brand Name Eaton
Circuit Breaker Type BR
Blade Dimensions 1.9 in L x 2.9 in W x 2.5 in H
Trip Type Common Breaker, Thermal Magnetic, Long Time and Instantaneous
Number of Poles 2 Pole
Interrupt Rating 10 kA
Conductor Size 14-4 AWG Copper/Aluminum
Applications For Residential and Light Commercial
Mounting Type Plug-On
Temperature Rating 40 C
Used With Type BR Loadcenters
Voltage 120/240 Volt
