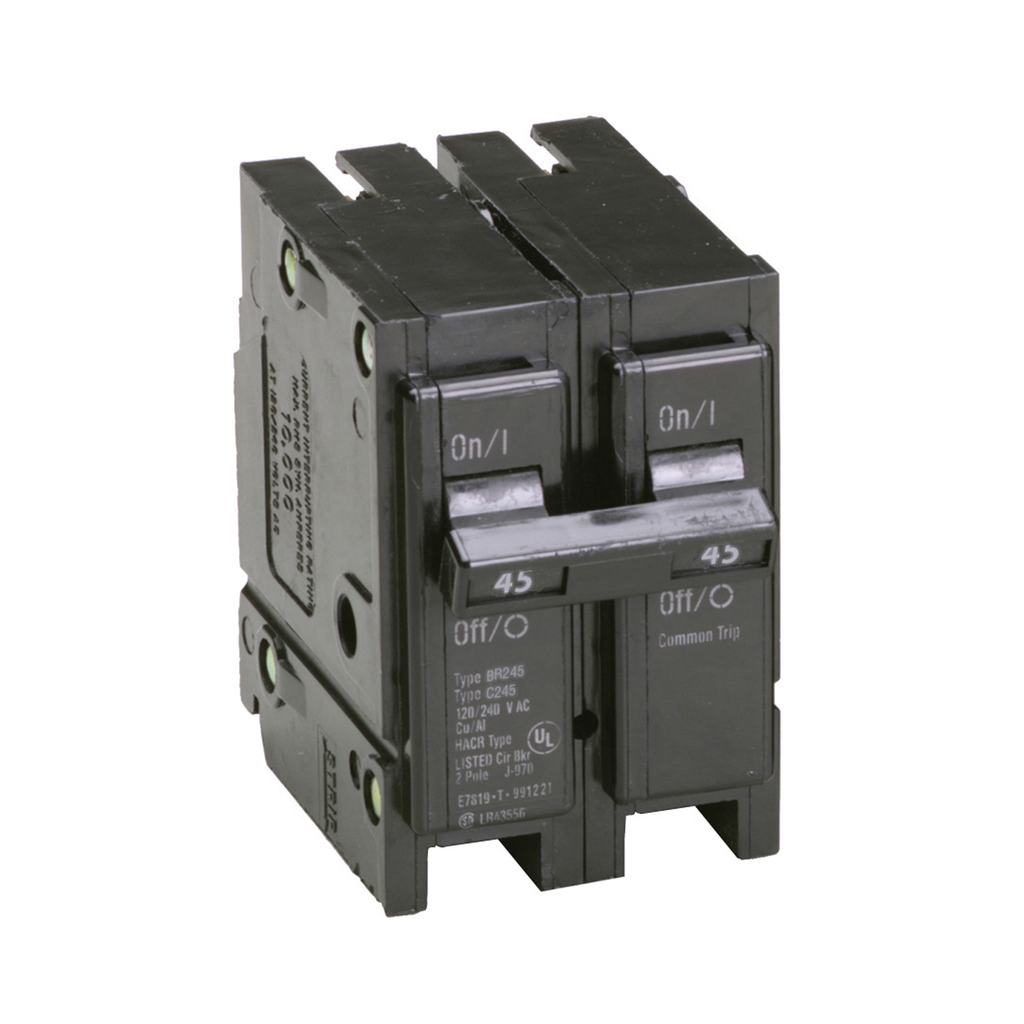

Eaton Electrical BR245 1 Inch Plug-On Circuit Breaker
$12.87/ea
21 Available for Delivery
Order by 04:00pm Wednesday for Delivery Thursday
21 Available for Pickup at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # BR245
World Electric Part # 433

Specifications

  • Special Features: Used with Type BR Loadcenters
  • Interrupt Rating: 10 kAIC
  • Wire Size: #14-4 AWG Cu/Al
  • Main Circuit Breaker: BR
  • Quantity: Q28
  • Mounting Method: Plug-on
  • Amperage Rating: 45A
  • Number Of Poles: Two-pole
  • Type: Type BR 1-Inch plug-on circuit breaker
  • Circuit Breaker Type: BR
  • Used With: Type BR Loadcenters
  • Voltage Rating: 120/240 V
  • Trip Type: Common breaker trip

General

  • UPC: 786676374453
  • Product Length/Depth: 1.9 IN
  • Product Height: 2.5 IN
  • Product Width: 2.9 IN
  • Product Weight: .6 LB
  • Compliances: Federal Specifications Classification W-C375
  • Certifications: UL 489

Overview

UPC 78667637445
Product Description Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,45 A,10 kAIC,Two-pole,120/240V,BR,Common breaker trip,#14-4 AWG Cu/Al,Q28,BR,Type BR Loadcenters
GTiN 00786676374453
Length 1.9 in
Voltage 120/240 Volt
Type 1 in
Mounting Type Plug-On
Height 2.5 in
Weight .6 lb
Wire Size 14-4 AWG
Standard UL 489,Federal Specifications Classification W-C375
Family Brand Name Eaton
Circuit Breaker Type BR
Amperage 45 Amp
Blade Dimensions 1.9000 IN X 2.9000 IN X 2.5000 IN
Trip Type Common Breaker Trip
Number of Poles 2 Pole
Interrupt Rating 10 kA
