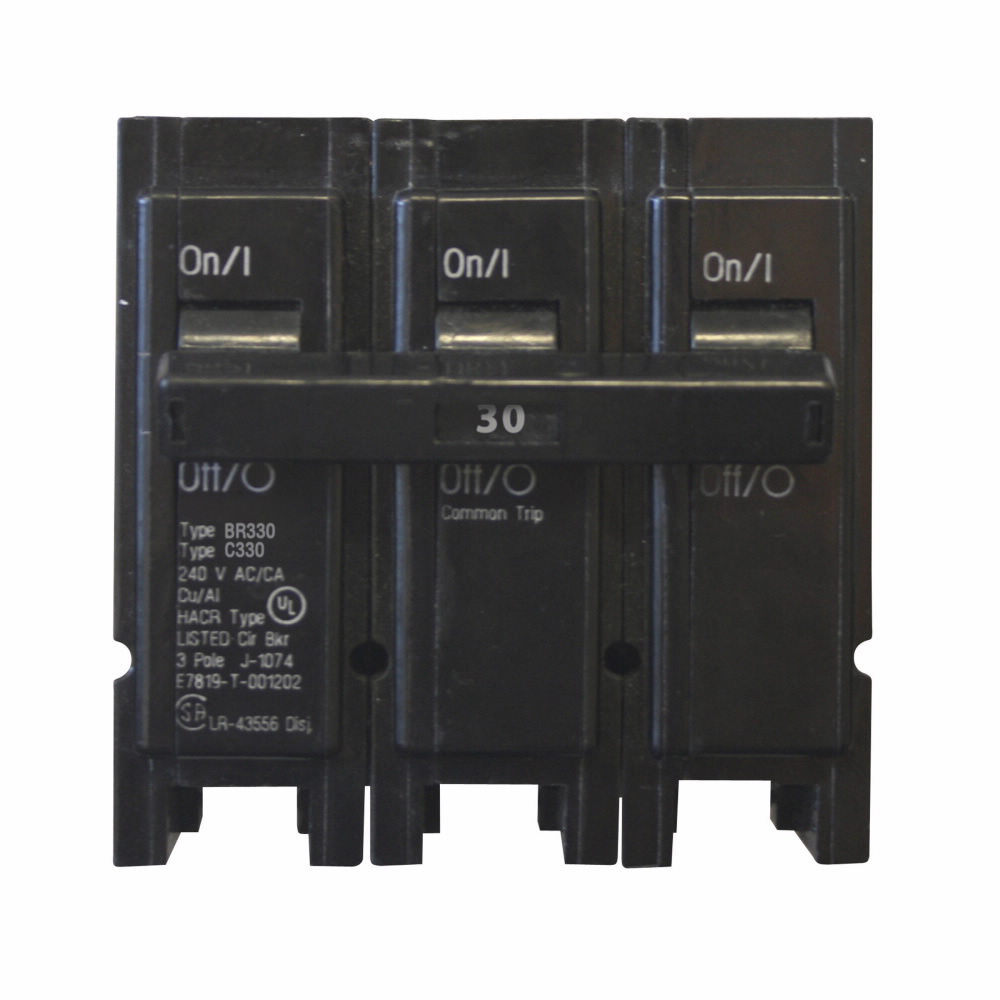

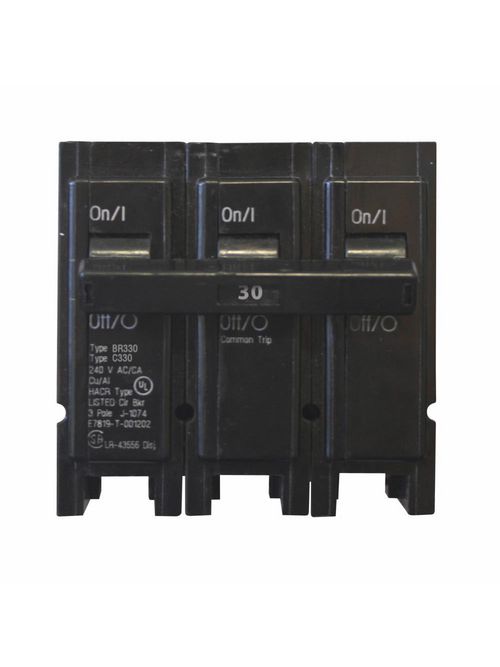

Eaton Electrical BR330 1 Inch Plug-On Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$75.99/ea
Usually ships within 8 to 12 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # BR330
World Electric Part # 975

Specifications

  • Interrupt Rating: 10 kAIC
  • Type: Type BR 1-Inch plug-on circuit breaker
  • Wire Size: #14-4 AWG Cu/Al
  • Circuit Breaker Type: BR
  • Used With: Type BR Loadcenters
  • Main Circuit Breaker: BR
  • Quantity: Q28
  • Mounting Method: Plug-on
  • Voltage Rating: 240V
  • Amperage Rating: 30A
  • Trip Type: Common breaker trip
  • Number Of Poles: Three-pole

General

  • UPC: 786676367806
  • Product Length/Depth: 2.8 IN
  • Product Height: 2.6 IN
  • Product Width: 2.9 IN
  • Product Weight: .95 LB
  • Compliances: Federal Specifications Classification W-C375
  • Certifications: UL 489

Overview

UPC 78667636780
Product Description Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,30 A,10 kAIC,Three-pole,240V,BR,Common breaker trip,#14-4 AWG Cu/Al,Q28,BR,Type BR Loadcenters
GTiN 00786676367806
Length 2.8 in
Voltage 240 Volt
Type Type BR
Mounting Type Plug-On
Height 2.6 in
Weight .95 lb
Wire Size 14-4 AWG
Family Brand Name Eaton
Circuit Breaker Type BR
Amperage 30 Amp
Blade Dimensions 2.8 in L x 2.9 in W x 2.6 in H
Trip Type Common Breaker, Thermal Magnetic, Long Time and Instantaneous
Number of Poles 3 Pole
Interrupt Rating 10 kA
Conductor Size 14-4 AWG Copper/Aluminum
Applications For Residential and Light Commercial
Temperature Rating 40 C
Used With Type BR Loadcenters
