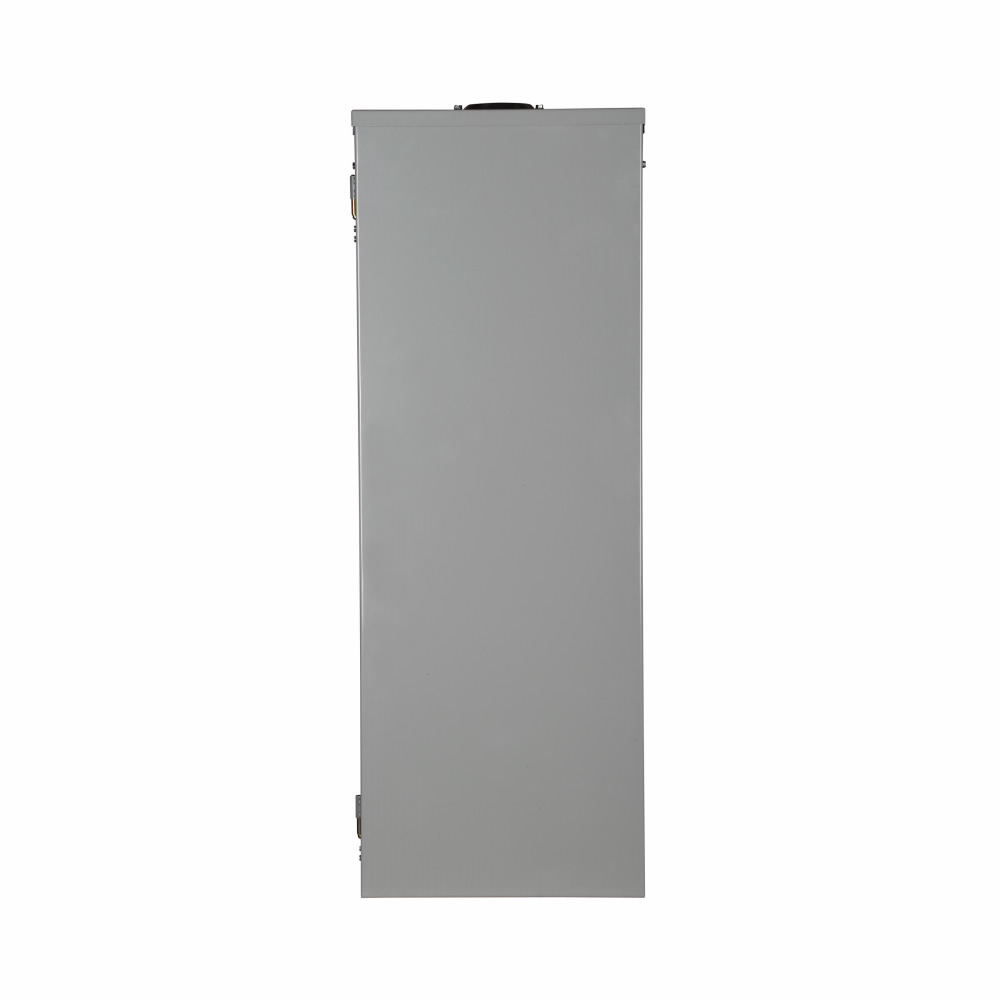

Eaton Electrical BR4242L225R 120/240 VAC 225 Amp 1-Phase 3-Wire 1 Inch Main Lug Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$206.95/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # BR4242L225R
World Electric Part # 654

Specifications

  • Number Of Spaces: 42
  • Special Features: No feed-thru lugs
  • Interrupt Rating: 25 kAIC
  • Phase: Single-phase
  • Wire Size: #1 AWG-300 kcmil Cu/Al
  • Bus Material: Aluminum
  • Main Circuit Breaker: BWH
  • Enclosure: NEMA 1
  • Amperage Rating: 225 A
  • Enclosure Material: Metallic
  • Type: Main lug
  • Cover: Cover included
  • Used With: Type BR 1-inch breakers
  • Number Of Wires: Three-wire
  • Number Of Circuits: 42
  • Voltage Rating: 120/240V
  • Box Size: L1r

General

  • UPC: 786676447904
  • Product Length/Depth: 5.2 IN
  • Product Height: 39 IN
  • Product Width: 14.3 IN
  • Product Weight: 37.2 LB
  • Warranty: 10 year
  • Certifications: UL 67

Overview

UPC 78667644790
Product Description Eaton Eaton BR main lug loadcenter, 225 A, L1R, Aluminum, NEMA 3R, Metallic, 25 kAIC, BWH, NEMA 3R, 42 Circuits, Twenty-four pole, 42 Spaces, Three-wire, Single-phase, Type BR 1-inch breakers, 120/240V, #1 AWG-300 kcmil Cu/Al
GTiN 00786676447904
Length 5.2 in
Width 14.3 in
Size L1r
Color Black
Voltage 120/240 Volt
Type Main Lug
Height 39 in
Weight 37.2 lb
Wire Size 300 kcmil
Family Brand Name Eaton
NEMA 3R
Number of Phases 1
Amperage 225 Amp
Blade Dimensions 5.2000 IN X 14.3000 IN X 39.0000 IN
Cover Type Cover included
Number of Circuits 42
Enclosure Material Metallic
Number of Spaces 42
Bus Material Aluminum
Number of Wires 3
Interrupt Rating 25 kA
Enclosure NEMA 3R
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
