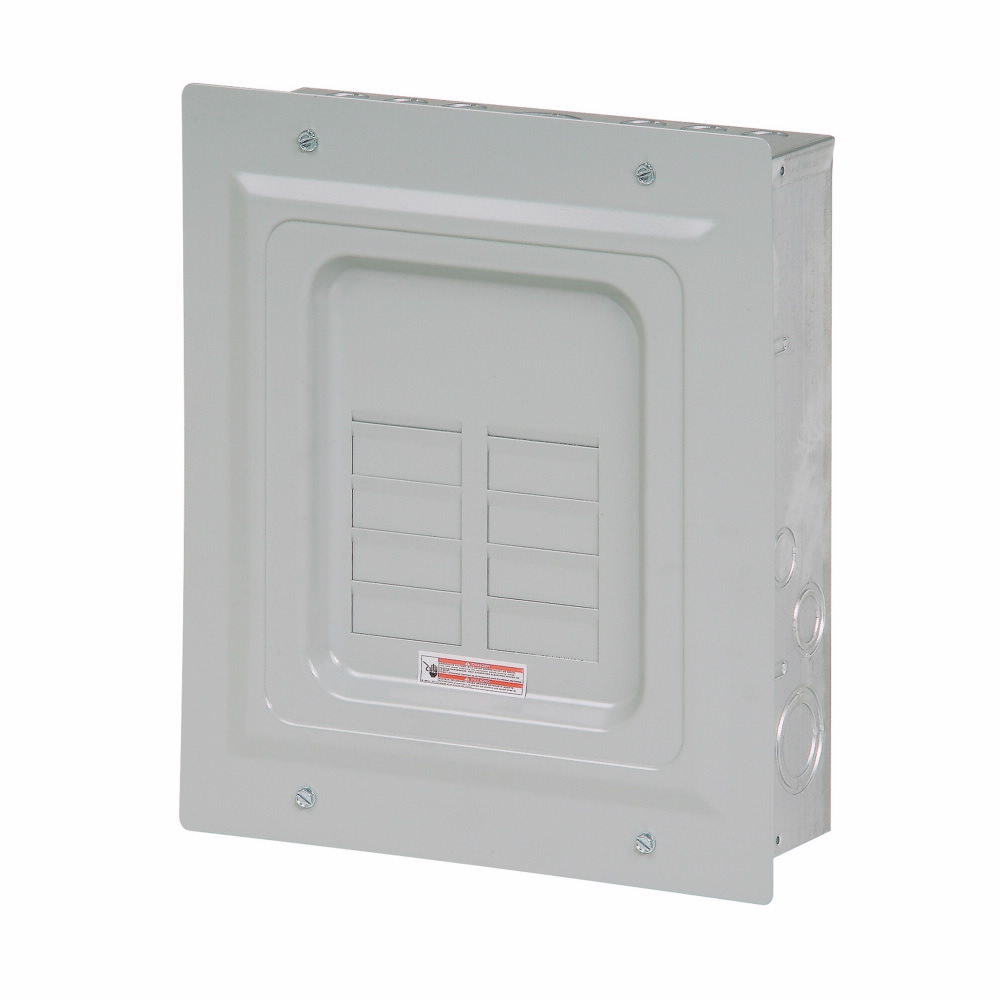

Eaton Electrical BR816L125FP 120/240 VAC 125 Amp 1-Phase 3-Wire 1 Inch Main Lug Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$93.98/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # BR816L125FP
World Electric Part # 536258

Specifications

General

  • UPC: 786676002110
  • Product Length/Depth: 3.56 IN
  • Product Height: 13 IN
  • Product Width: 11 IN
  • Product Weight: 12 LB
  • Warranty: 10 year
  • Certifications: UL 50

Overview

UPC 78667600211
Product Description Eaton Eaton BR main lug loadcenter ,Ground bar, current design,Main lug,125 A,7R,Aluminum,Cover included,NEMA 3R,Metallic,10 kAIC,BR,NEMA 3R,12 Circuits,Twenty-four pole,6 Spaces,Three-wire,Single-phase
GTiN 00786676002110
Length 3.56 in
Width 11 in
Size 7
Color Black
Voltage 120/240 Volt
Type Main lug loadcenter
Mounting Type Flush
Height 13 in
Weight 12 lb
Wire Size 14-1 AWG
Family Brand Name Eaton
NEMA 1
Number of Phases 1 Phase
Amperage 125 Amp
Blade Dimensions 3.5600 IN X 11.0000 IN X 13.0000 IN
Cover Type Cover not included
Number of Circuits 16
Enclosure Material Metallic
Number of Spaces 8
Bus Material Aluminum
Number of Wires 3
Interrupt Rating 10 kA
Enclosure NEMA 1
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
