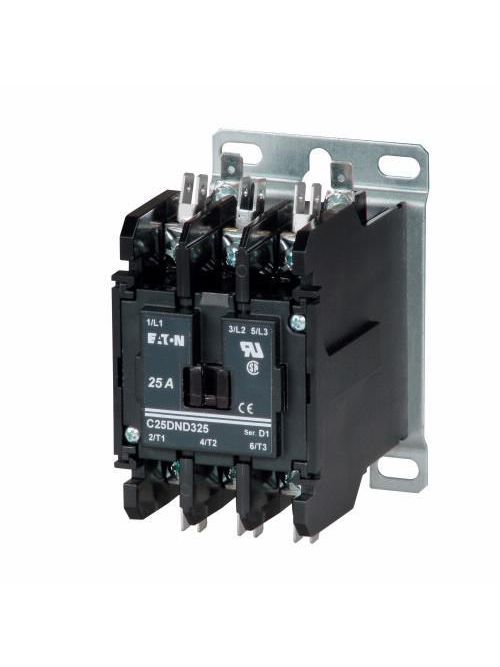

Eaton C25DND225A Definite Purpose Control Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$85.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # C25DND225A
World Electric Part # 1662

Specifications

  • Height: 3 IN
  • Length: 4 IN
  • Width: 3.5 IN
  • Weight: 1.3 LB
  • Connection: Quick
  • Amperage Rating: 25A
  • Coil: 110-120 Vac, 50/60 Hz
  • Enclosure: Open with metal mounting plate
  • Frame Size: 15-50A, two- and three-pole
  • Model: Contactor
  • Number Of Poles: Two-pole
  • Resistive Load: 35A
  • Terminals: Screw/pressure plate and quick connect terminals (side-by-side)
  • Type: Non-reversing

Overview

UPC 78211630030
Product Description DP CONTACTOR, 2P, 25A, 120V
GTiN 00782116300303
Length 4 in
Width 3.5 in
Type Non-Reversing, Open
Terminal Type Screw/Pressure Plate And Quick Connect Terminals
Applications For Electrical Assemblies, Panels and EOEMs
Height 3 in
Weight 1.3 lb
Connection Type Quick
Coil Voltage 110 - 120 VAC at 50/60 Hz
Family Brand Name Eaton
Enclosure Type Open With Metal Mounting Plate
Frame 2-Pole,3-Pole
TC Connection Quick
Amperage 25 Amp
Blade Dimensions 2.4 in W x 3.35 in D x 3-3/4 in H
Number of Poles 2 Pole
Enclosure Open With Metal Mounting Plate
Power Rating 1.5 kW at 1 Phase
