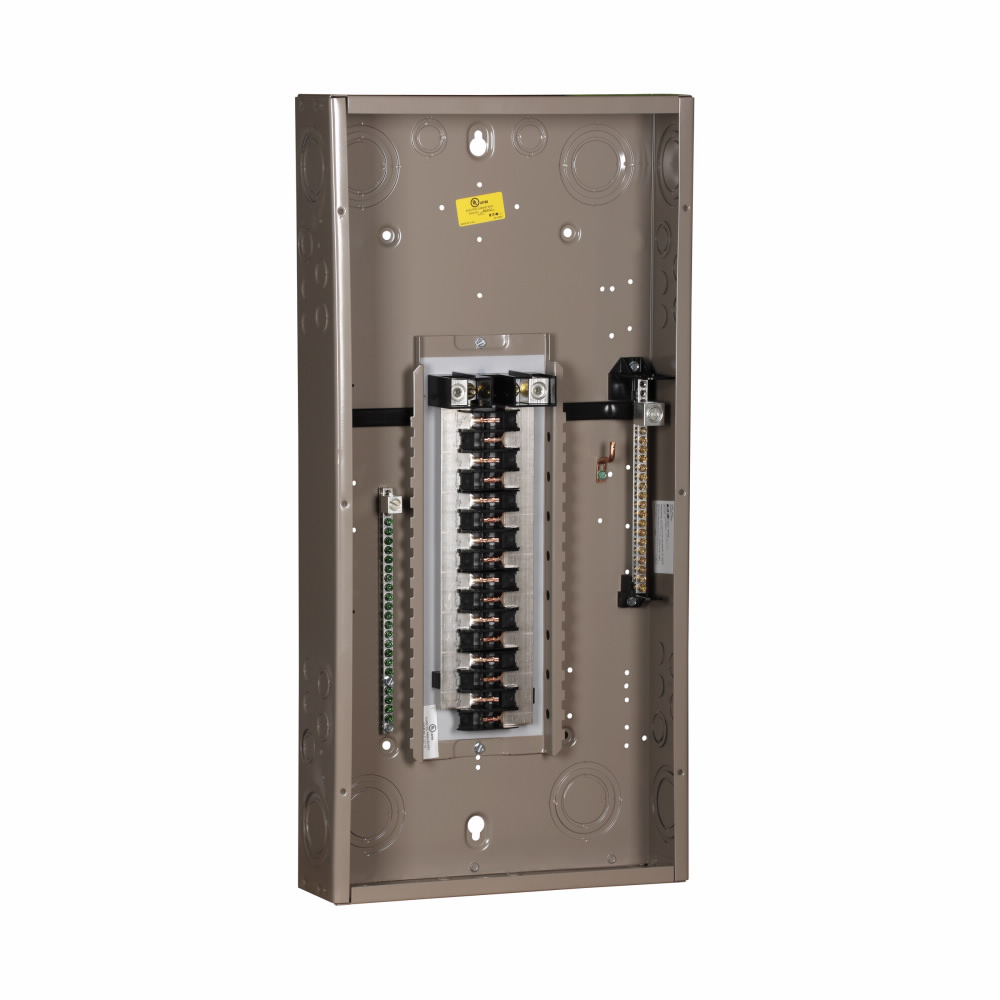

Eaton CH32L150D 3/4 Inch Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$115.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # CH32L150D
World Electric Part # 1171

Specifications

  • Number Of Spaces: 32
  • Special Features: Standard
  • Interrupt Rating: 25 kAIC
  • Phase: Single-phase
  • Wire Size: #4 AWG-300 kcmil
  • Bus Material: Copper
  • Main Circuit Breaker: CH
  • Enclosure: NEMA 1
  • Amperage Rating: 150 A
  • Enclosure Material: Metallic
  • Type: Main lug only
  • Feed Type: Top/bottom
  • Cover: Ch8df-combination, ch8ds-surface
  • Number Of Wires: Three-wire
  • Number Of Circuits: 32
  • Box Size: D

General

  • UPC: 782113098029
  • Product Length/Depth: 29.13 IN
  • Product Height: 3.88 IN
  • Product Width: 14.31 IN
  • Product Weight: 15 LB
  • Warranty: Limited lifetime
  • Certifications: UL 67
  • Catalog Notes: Suitable for use as service equipment when not more than six service disconnecting mains are provided or when not used as a lighting and appliance panelboard.

Overview

UPC 78211309802
Product Description CH 3/4-inch loadcenter,Standard,Main lug only,150A,D,Copper,Ch8df-combination, ch8ds-surface,NEMA 1,Metallic,Top/bottom,CH,32,32,Three-wire,Single-phase,#4 AWG-300 kcmil
GTiN 00782113098029
Length 29.13 in
Width 14.31 in
Size D
Type Main Lug Only
Height 3.88 in
Weight 15 lb
Wire Size 300 kcmil
Family Brand Name Eaton
NEMA 1
Number of Phases 1 Phase
Amperage 150 Amp
Blade Dimensions 29.1300 IN X 14.3100 IN X 3.8800 IN
Cover Type Ch8df-combination, ch8ds-surface
Number of Circuits 32
Enclosure Material Metallic
Number of Spaces 32
Bus Material Copper
Number of Wires 3
Interrupt Rating 25 kA
Enclosure NEMA 1
Feed Type Top/bottom
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
