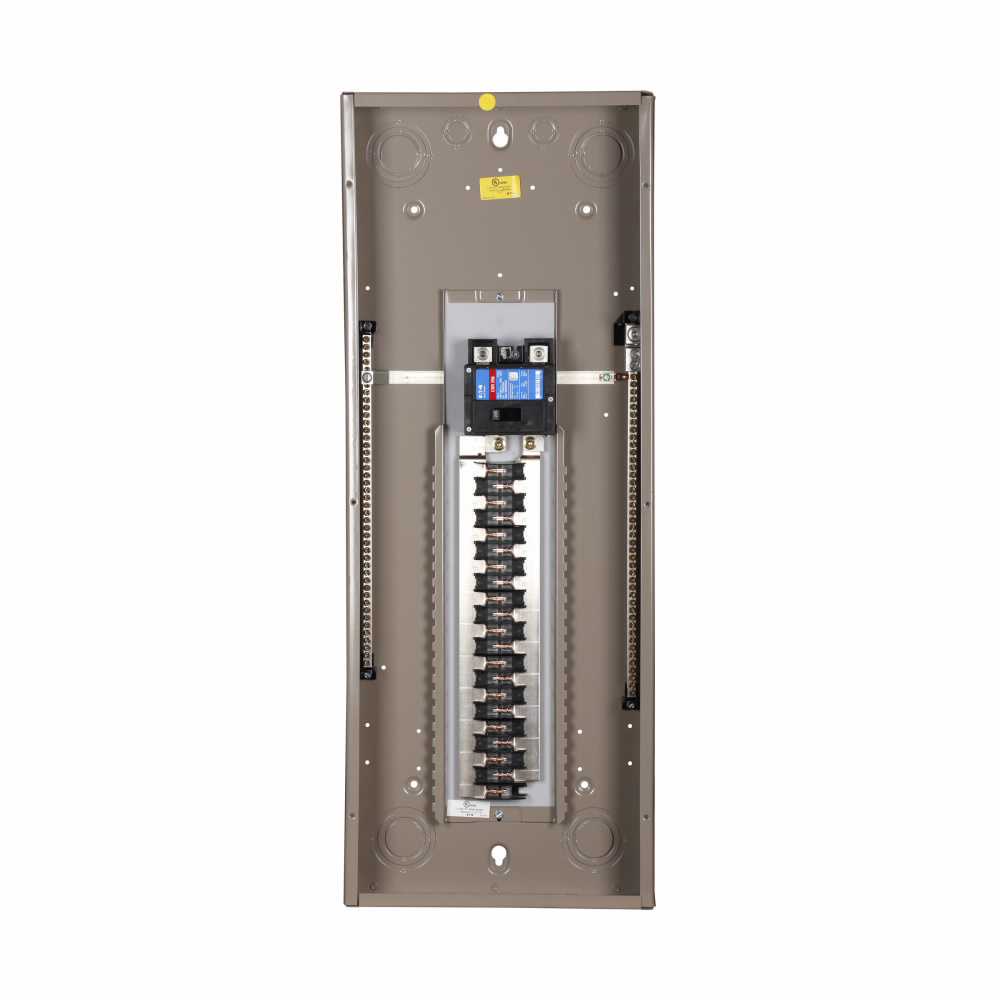

Eaton Electrical CH42B225R 120/240 VAC 225 Amp 1-Phase 3-Wire 3/4 Inch Main Breaker Load Center
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,414.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # CH42B225R
World Electric Part # 1552

Specifications

General

  • UPC: 782113098395
  • Product Length/Depth: 37 IN
  • Product Height: 5.19 IN
  • Product Width: 14.31 IN
  • Product Weight: 15.8 LB
  • Warranty: Limited lifetime
  • Certifications: UL 67
  • Catalog Notes: Furnished with hub closure plates. Loadcenter contains single insulated/bondable neutral.

Overview

UPC 78211309839
Product Description Eaton CH main breaker loadcenters,Standard,Main breaker,225 A,K,Copper,NEMA 3R,Metallic,25 kAIC,CSR,42,42,Three-wire,Single-phase,#2 AWG-300 kcmil,Overhead,120/240 V
GTiN 00782113098395
Length 37 in
Size K
Color Black
Voltage 120/240 Volt
Type Main breaker loadcenter
Height 5.19 in
Weight 15.8 lb
Wire Size -300 MCM
Family Brand Name Eaton
NEMA 3R
Number of Phases 1 Phase
Amperage 225 Amp
Blade Dimensions 37.0000 IN X 14.3100 IN X 5.1900 IN
Number of Circuits 42
Enclosure Material Metallic
Number of Spaces 42
Bus Material Copper
Number of Wires 3
Interrupt Rating 25 kA
Enclosure NEMA 3R
Feed Type Overhead
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
