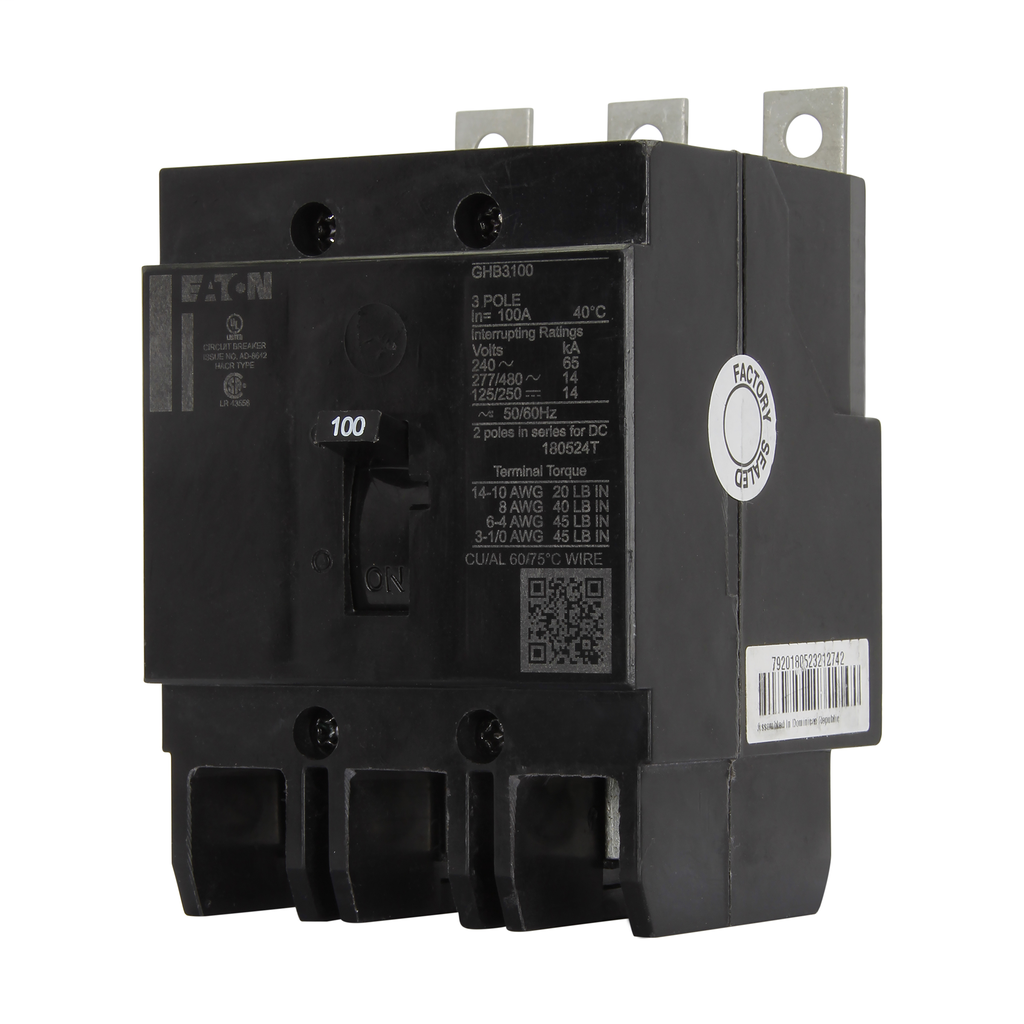

Eaton Electrical GHB3100 Series C G Frame Bolt-On Molded Case Circuit Breaker
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$328.59/ea
2 Available for Delivery
Order by 04:00pm Monday for Delivery Tuesday
2 Available for Pickup at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # GHB3100
World Electric Part # 1446

Specifications

  • Height: 4 IN
  • Length: 2.63 IN
  • Width: 3 IN
  • Weight: 1.75 LB
  • Type: Molded case circuit breaker
  • Amperage Rating: 100A
  • Interrupt Rating: 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac
  • Number Of Poles: Three-pole
  • Voltage Rating: 480Y/277 Vac, 125/250 Vdc
  • Trip Type: Fixed thermal, fixed magnetic
  • Circuit Breaker Type: GHB
  • Circuit Breaker Frame Type: Complete breaker
  • Frame Size: G-frame
  • Series: Series C
  • Frequency Rating: 50/60 Hz

Overview

UPC 78667991133
Product Description Eaton Series C complete molded case circuit breaker, G-frame, GHB, Complete breaker, Fixed thermal, Fixed magnetic trip type, Three-pole, 100 A, 480Y/277 Vac, 125/250 Vdc, 50/60 Hz
GTiN 00786679911334
Length 2.63 in
Voltage 125/250 Volt
Type Molded Case Circuit Breaker
Height 4 in
Weight 1.75 lb
Frequency 50/60 Hz
Family Brand Name Eaton
Circuit Breaker Type GHB
Frame G-Frame
Amperage 100 Amp
Blade Dimensions 2.6300 IN X 3.0000 IN X 4.0000 IN
Trip Type Fixed Magnetic,Fixed Thermal
Number of Poles 3 Pole
Interrupt Rating 14 kA
Applications Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
Width 3 in
Current 100 A
