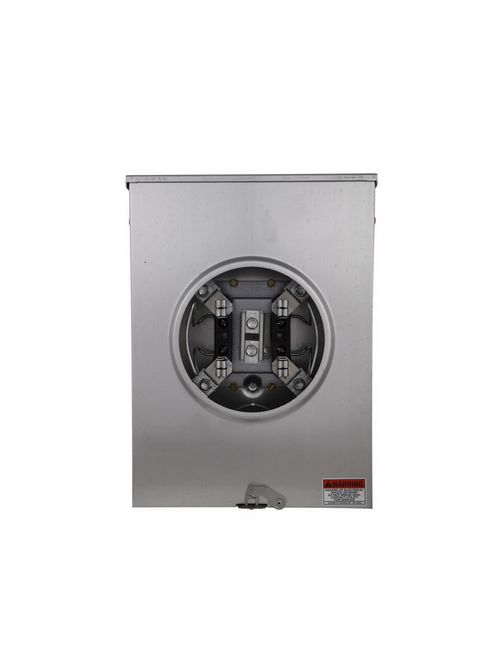

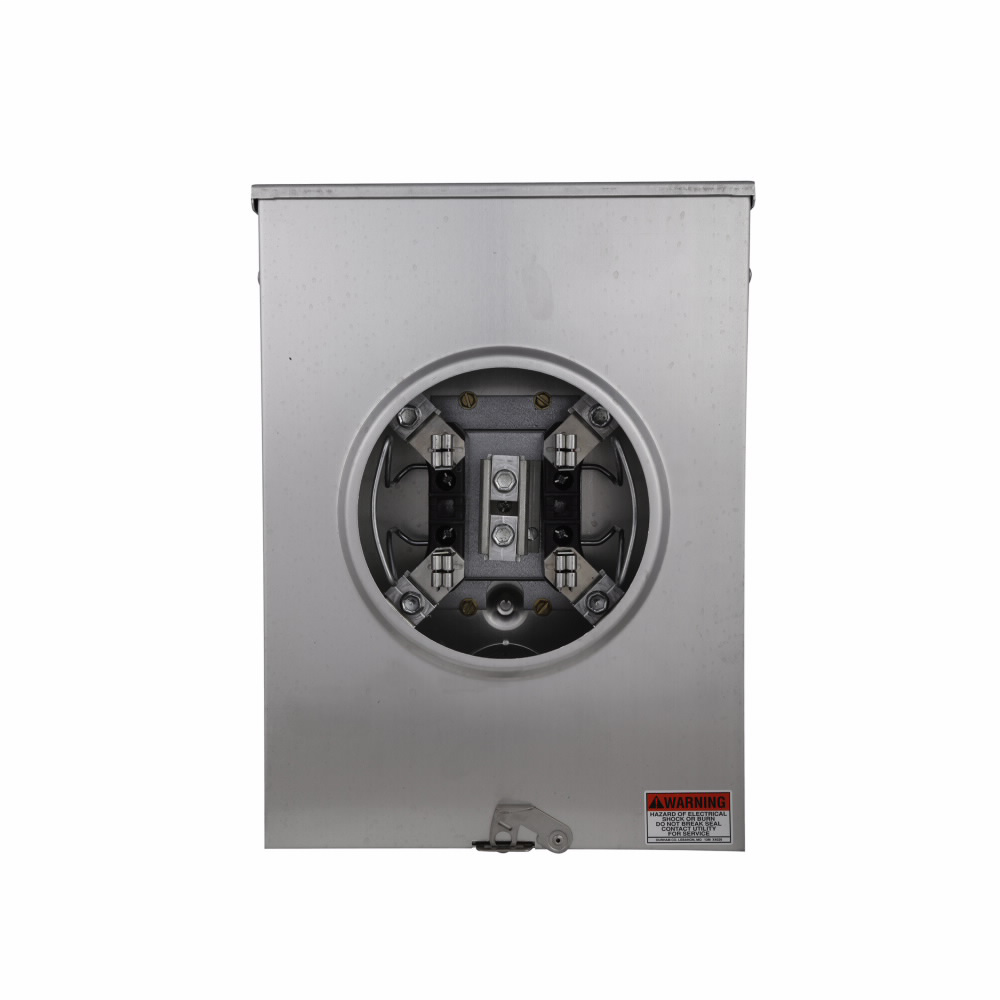

Eaton UATRS213CFLCH Meter Socket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$103.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cutler-Hammer / Eaton
Mfg Catalog # UATRS213CFLCH
World Electric Part # 953

Specifications

  • Phase: Single-phase
  • Utility Approvals: FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric)
  • Number Of Jaws: Four-jaw
  • Security: Ringless
  • Amperage Rating: 200A
  • Hub Type: 3-5/16 in hub opening
  • Line: #8-350 kcmil
  • Enclosure material: 063 Aluminum
  • Load: #8-350 kcmil
  • Type: Single-position residential service
  • Feed Type: Top/bottom
  • Number Of Sockets: 1
  • Number of wires: Three-wire
  • Voltage Rating: 600V

General

  • UPC: 782116128297
  • Product Length/Depth: 4.38 IN
  • Product Height: 15 IN
  • Product Width: 11 IN
  • Product Weight: 7 LB
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Certifications: UL Listed

Categories

Overview

UPC 78211612829
Product Description Eaton meter socket, 1-pos resi service, 200A, Over/under, 3-5/16 inch hub cover pl, #8-350 kcmil, 4-jaw, 1-ph, #8-350 kcmil, none, Gnd conn (#14-#2 Cu), Al, Triplex, 3-wire, Ringless, 600 Vac
GTiN 00782116128297
Length 4.38 in
Width 11 in
Voltage 600 Volt
Type Residential Service,Single Position
Height 15 in
Weight 7 lb
Family Brand Name Eaton
Number of Phases 1 Phase
Amperage 200 Amp
Blade Dimensions 4.3800 IN X 11.0000 IN X 15.0000 IN
Enclosure Material 063 Aluminum
Number of Jaws 4
Number of Wires 3
Feed Type Top/bottom
Applications Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other
