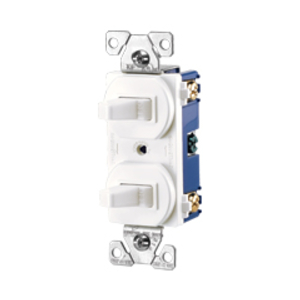

EWD 276W-BOX Switch Duplex Comb 3Wa
Product image thumbnail 0
Product image thumbnail 1
$48.29/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eagle Electric
Mfg Catalog # 276W-BOX
World Electric Part # 2249

Specifications

  • Connector Type: Screw
  • Switch Type: (2) Three-way
  • Configuration: Two toggle switches
  • Mounting Type: Flush
  • Closure Type: Maintained
  • Color: White
  • Wiring Method: Back and side
  • Material: Thermoplastic
  • Allowable Wire Size: #14 - #12 AWG
  • Amperage Rating: 15A
  • Contact Type: Brass
  • Type: Standard
  • Device Grade: Commercial
  • Style Type: Duplex
  • Operating Temperature: -20-60˚C
  • Number of Ways: (2) Three-way
  • Voltage Rating: 120/277 V
  • Application: Commercial
  • Actuator: Toggle

General

  • UPC: 032664161605
  • Product Length/Depth: 4.25 IN
  • Product Height: 1.88 IN
  • Product Width: 1.75 IN
  • Product Weight: .2 LB
  • Compliances: RoHS Compliant
  • Certifications: cULus Listed
> View Substitutes (1)

Overview

UPC 03266416160
Family Brand Name Eagle Electric
Product Description Eaton commercial grade combination switch, Stand, #14 - #12 AWG, 15A, Commer, 120/277V, bk and sd wiring, togg, Maint closure, Screw, Brass, wht, -20-60?C, (2) 3-way, dplx, thermoplas
GTiN 00032664161605
Length 4.25 in
Width 1.75 in
Color White
Operating Temperature -20-60 C
Voltage 120/277 Volt
Type Standard
Material Thermoplastic
Applications NON-RESI SWITCHES
Mounting Type Mounting Straps Are Zinc Plated To For Added Corrosion Resistance
Height 1.88 in
Weight .2 lb
Connection Type Screw
Actuator Toggle
Contact Configuration Heavy Duty Brass
Amperage 15 Amp
Enclosure Thermoplastic Top And Backbody Are Virtually Unbreakable
Action Switch
Sub Brand Eaton Wiring Devices
