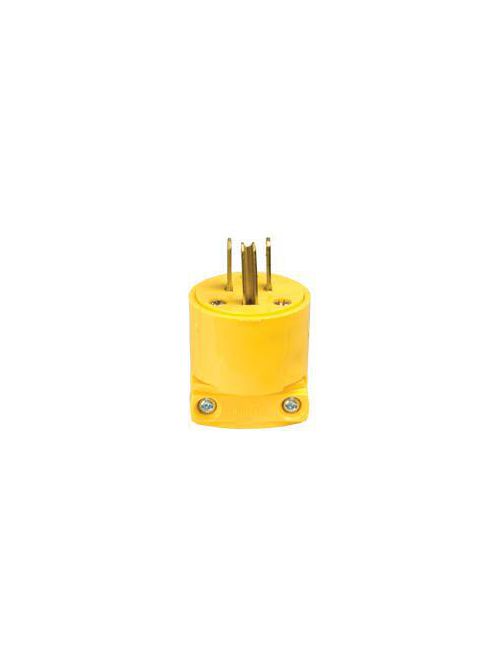

EWD 4867-BOX Plug 15A 125V 2P3W Vin
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$8.29/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eagle Electric
Mfg Catalog # 4867-BOX
World Electric Part # 2042

Specifications

  • Special Features: Angled body
  • Color: Yellow
  • Device Type: Plug
  • Face/Body Material: Vinyl
  • Wiring Method: Back wire
  • Material: Vinyl
  • Allowable Wire Size: #18-12 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Device Grade: Commercial
  • Nema Configuration: 5-15P
  • Style Type: Straight body
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 125V
  • Application: Commercial

General

  • UPC: 032664340901
  • Product Length/Depth: 2.5 IN
  • Product Height: 1.5 IN
  • Product Width: 1.5 IN
  • Product Weight: .06 LB
  • Compliances: RoHS Compliant
  • Certifications: UL

Categories

Overview

UPC 03266434090
Product Description Commercial Grade Plugs & Connectors - NEMA 5-15, 2-Pole/3-Wire are designed for light commercial applications, where ease-of-use, value and quality are critical.
GTiN 00032664340901
Length 2.5 in
Width 1.5 in
Color Yellow
Voltage 125 Volt
Type Commercial Grade, Grounded Straight
Material Vinyl
Applications For Hard Surface Application
Mounting Type Plug
Height 1.5 in
Weight .06 lb
Wire Size 18-10 AWG
Connection Type Plug
Temperature Rating -20 to 60 deg C
Family Brand Name Eaton
Contact Material Solid Brass
Amperage 15 Amp
Blade Dimensions 1-1/2 in W x 2.45 in D x 1-1/2 in H
Cord Size 1/4 - 0.655 in
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
