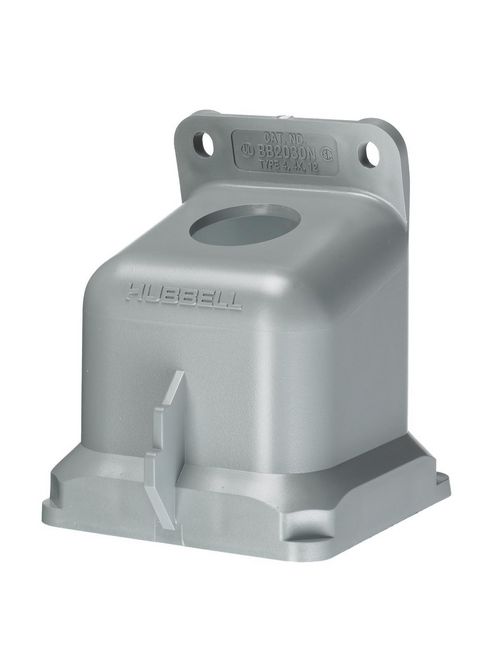

Hubbell Wiring Devices BB2030N 1 Inch Non-Metallic 15 Degrees Watertight IEC Pin and Sleeve Back Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$66.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device
Mfg Catalog # BB2030N
World Electric Part # 204

Specifications

General

  • Application: Non-Metallic
  • Color: Gray
  • Construction: Molded
  • Item Type: Mounting Box
  • Knockouts: 1" NPT
  • Material: Thermoplastic
  • Material - Mounting Hardware: Mounting Screws
  • Number Of Outlets: Accepts 1-Device
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Moisture Resistance - IP67 Suitability
  • Style: For 20 And 30A Watertight Safety Shroud Receptacles And Inlets
  • Temperature Range: Limited By Device
  • Type: Back Box
  • UPC: 783585390871

Dimensions

  • Dimensions: 5.67 in x 4.44 in x 3.91 in
  • Display Size: For 16, 20, 30 and 32 Amp Devices
  • Height: 3.91 in
  • Length: 5.67 in
  • Weight: 0.8 lb
  • Width: 4.44 in

Conductor Related

  • Cable Entry: Through Hub

Certifications and Compliance

  • Industry Standard(s): UL Raintight and External Icing Test

Logistics

  • Carton Quantity: 10
  • Pallet Quantity: 240

Categories

Overview

UPC 78358539087
Product Description Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessory, Back Box, For 20A and 30A 3/4" NPT Hub, Angled, MountingScrews Included, Gray Non-Metallic
GTiN 00783585390871
Length 5.67 in
Width 99.3 mm
Size For 16, 20, 30 and 32 Amp Devices
Color Gray
Type Accepts 1-Device Outlet, Rectangular, 15 Angled
Material Thermoplastic
Applications 16, 20, 30 and 32 A Devices
Mounting Type Screw
Height 3.91 in
Weight 0.8 lb
Family Brand Name Hubbell Wiring Device Kellems
Construction Molded
Cable Entry 1 in NPT Hub
Sub Brand Shrouded Watertight Twist-Lock and IEC Pin and Sleeve
Standard External Icing Test,UL Raintight
