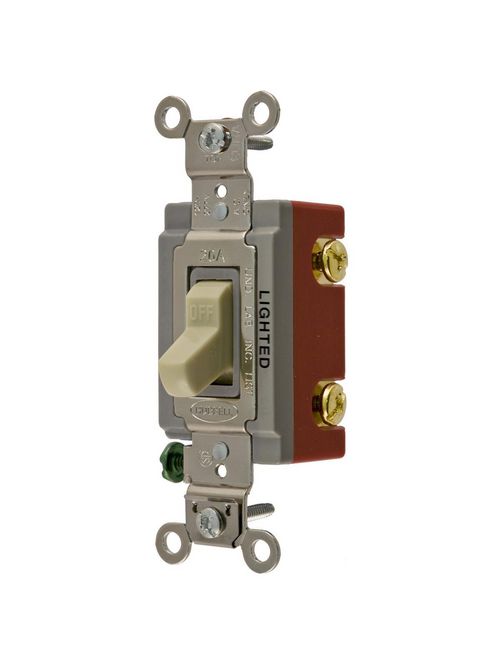

Hubbell Wiring Devices HBL1221IL 20 Amp 120/277 VAC 1-Pole Ivory Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$60.99/ea
1 Available for Delivery
Order by 04:00pm Wednesday for Delivery Thursday
1 Available for Pickup at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device
Mfg Catalog # HBL1221IL
World Electric Part # 1758

Features

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
  • Illuminated Toggle

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Dimensions: 4.06 in x 1.31 in x 1.86 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.86 in
  • Indicator: Light On with Load Off
  • Industry Standard(s): UL Listed
  • Length: 4.06 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
  • Show Add To ProjectList: Yes
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Amperage Rating: 20 A
  • Application: Back and Side Wired
  • Color: Ivory
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 4.06 in x 1.31 in x 1.86 in
  • Special Features: Illuminated Toggle
  • Standard: UL Listed
  • Type: Toggle
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Width: 1.31 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358543140
Product Description Switches and Lighting Controls, Industrial Grade, Illuminated Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Ivory Toggle
GTiN 00783585431406
Length 4.06 in
Width 1.31 in
Size 4.06 in x 1.31 in x 1.86 in
Color Ivory
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, 2-Position, Extra Heavy Duty
Material Thermoplastic
Product Series Extra Heavy Duty
Applications Back and Side Wired
Height 1.660 in
Grade Industrial
Weight 0.2 lb
Wattage 5540 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired
Actuator Toggle, Rocker/Button
Contact Configuration Two Position
Current 20 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Action Off
Operating Cycles 50000
Sub Brand AC Toggle Switches
Environmental Conditions Indoor Dry unless protected by additional means
