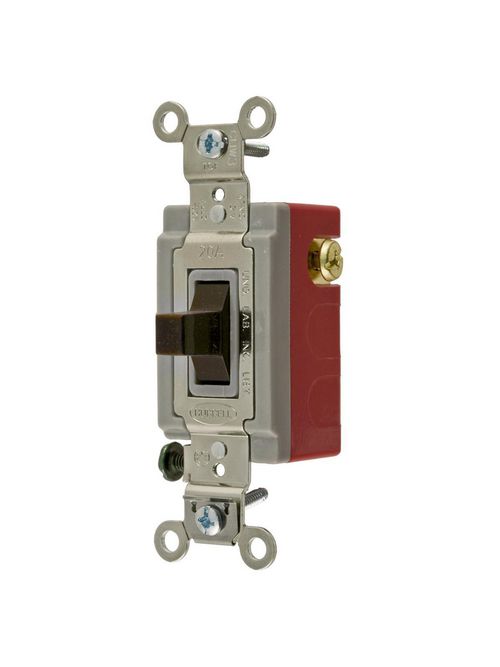

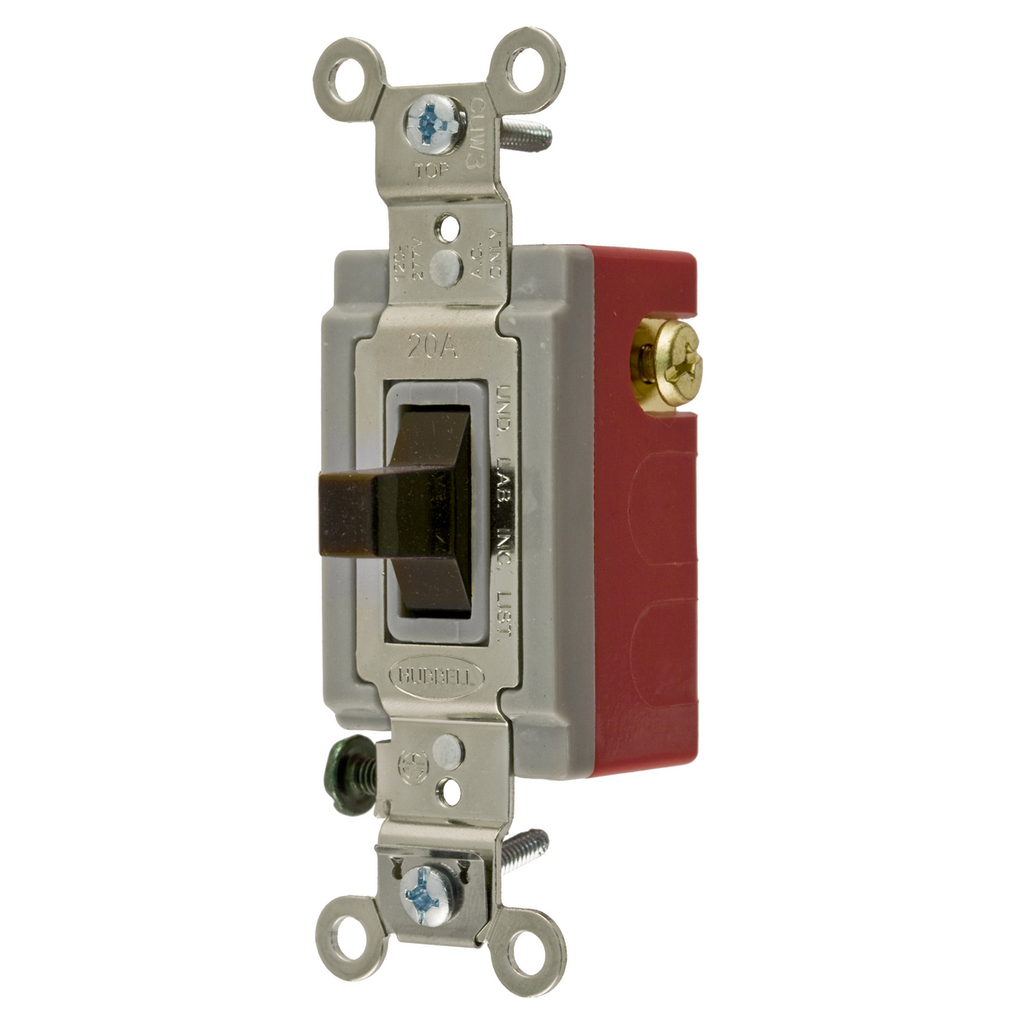

Hubbell Wiring Devices HBL1385 20 Amp 120/277 VAC SPDT Brown Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$114.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device
Mfg Catalog # HBL1385
World Electric Part # 837

Features

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
  • Maintained Contact

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Dimensions: 4.06 in x 1.31 in x 1.89 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.89 in
  • Industry Standard(s): UL Listed
  • Length: 4.06 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Action: SPDT
  • Amperage Rating: 20 A
  • Application: Back and Side Wired
  • Color: Brown
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 4.06 in x 1.31 in x 1.89 in
  • Special Features: Maintained Contact
  • Standard: UL Listed
  • Type: Toggle
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Width: 1.31 in
  • Wire Size: #14 AWG to #10 AWG
  • Connectivity: Back and Side Wired
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Weight: 0.25 lb
  • Number Of Poles: Single Pole
  • Series: Extra Heavy Duty
  • Style: Single Pole Double Throw

Certifications

  • EU RoHS Indicator: No

Overview

MDM UPC 78358543260
GTiN 00783585432601
Length 4.06 Inch
Width 1.31 in
Size 4.06 in x 1.31 in x 1.89 in
Color Brown
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, 3-Position Center Off, Extra Heavy Duty
Product Series Extra Heavy Duty
Applications Back and Side Wired
Height 1.66 Inch
Grade Industrial
Weight 0.25 lb
Wattage 5540 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration SPDT
Current 20 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Operating Cycles 50000
Sub Brand AC Toggle Switches
Standard UL
Environmental Conditions Indoor Dry unless protected by additional means
Action SPDT
Country of Origin China
Wire Size 14-10 AWG
