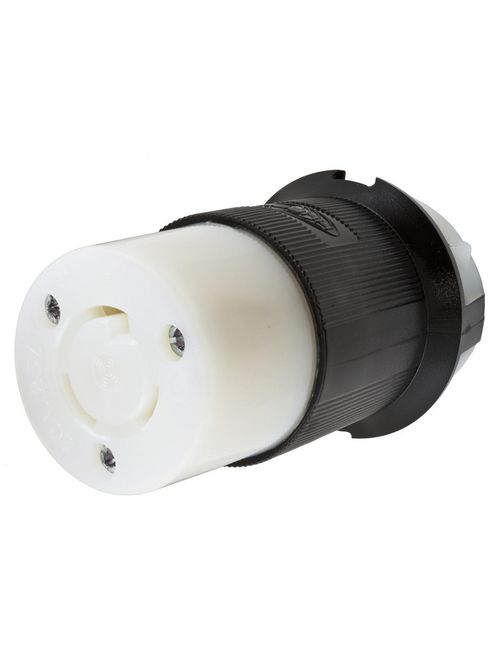

Hubbell Wiring Devices HBL2313 20 Amp 125 Volt 2-Pole 3-Wire NEMA L5-20R Black and White Locking Connector Body
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$44.79/ea
20 Available for Delivery
Order by 04:00pm Monday for Delivery Tuesday
20 Available for Pickup at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device
Mfg Catalog # HBL2313
World Electric Part # 1822

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 2.26 in x 2.26 in x 3.86 in
  • Each - Height: 2.418 in
  • Each - Length: 3.978 in
  • Each - Width: 2.418 in
  • Height: 3.86 in
  • Horsepower - Maximum: 1
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
  • Length: 2.26 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Heavy Duty Industrial
  • Color: Black, White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • NEMA Rating: L5-20R
  • Number of Poles: 2-Pole
  • Size: 2.26 in x 2.26 in x 3.86 in
  • Special Features: Standard Product
  • Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Connector Body
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 VAC
  • Width: 2.26 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358503774
Product Description Locking Devices, Twist-Lock, Industrial, Female Insulgrip Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Black and White Nylon.
GTiN 00783585037745
Length 2.26 in
Width 2.26 in
Size 2.26 in x 2.26 in x 3.86 in
Color Black and White
Voltage 125 V
Type Female, Standard
Material Composite
Number of Conductors 3
Conductor Size 12-10 AWG
Applications Heavy Duty Industrial
Height 3.86 in
Weight 0.30 lb
Connection Type Pressure Screw
Temperature Rating -25 to 75 C with Impact, -40 to 75 C without Impact
Family Brand Name Hubbell Wiring Device Kellems
Number of Ports 2
TC Connection Pressure Screw Terminal
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock, Insulgrip
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Environmental Conditions Indoor Dry Unless Protected By Additional Means
