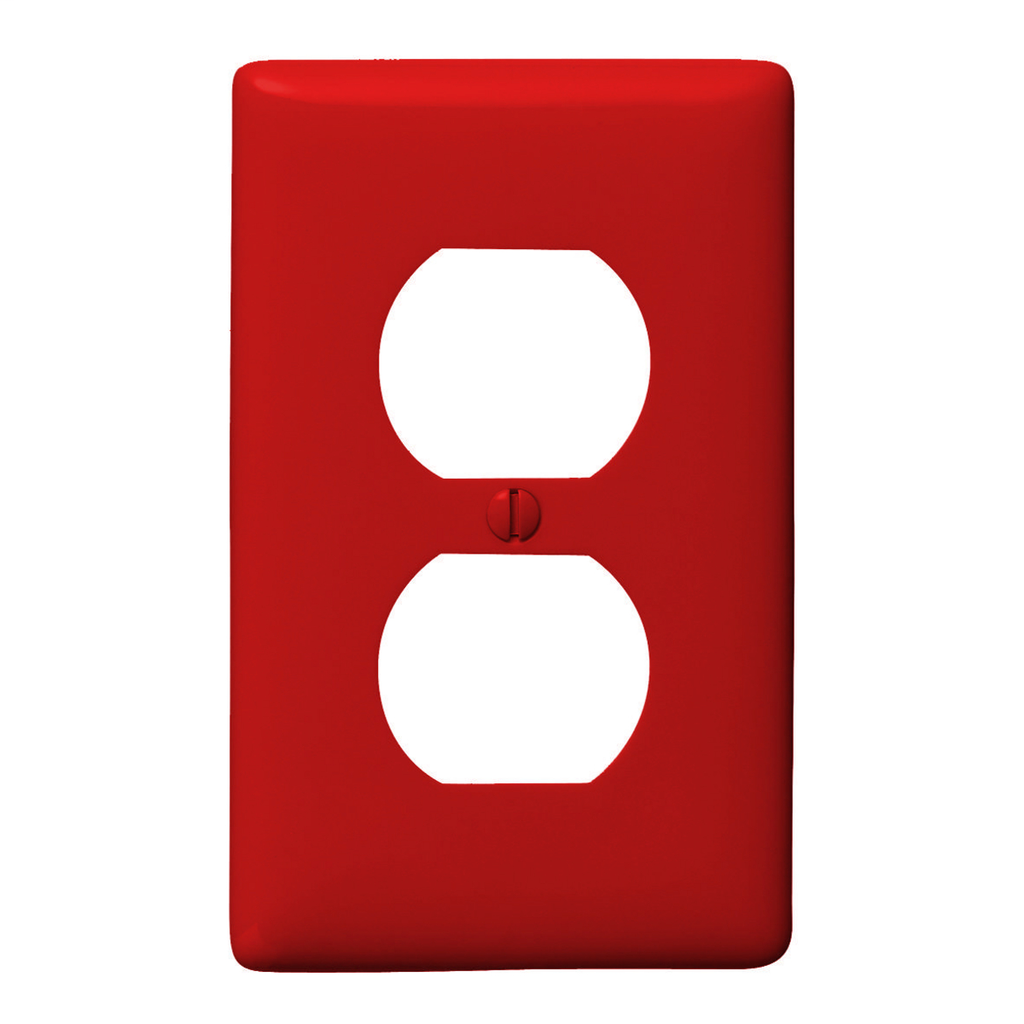

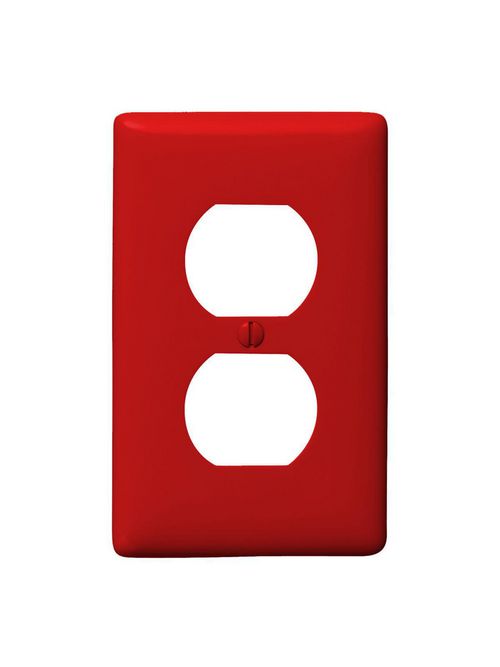

Hubbell Wiring Devices NP8R 1-Gang Red Nylon Standard 1-Duplex Receptacle Wallplate
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device
Mfg Catalog # NP8R
World Electric Part # 134324


  • Reinforcement ribs for extra strength
  • Captive screw feature holds mounting screw in place
  • High-impact, self-extinguishing nylon material



  • Application: Protection against contact of live terminals and wiring. Provides finished look to installation.
  • Color: Red
  • Construction: Molded
  • Cutout: 1) Duplex
  • EU RoHS Indicator: Yes
  • Item Type: Screw Mount
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number of Gang(s): 1-Gang
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Orientation: Vertical Mount
  • Size: Standard
  • Style: 1-Duplex
  • Type: Duplex
  • UPC: 883778102134


  • Dimensions: 4.62 in x 2.87 in x 0.25 in
  • Display Size: Standard Sized
  • Height: 0.25 in
  • Length: 4.62 in
  • Thickness: 0.05
  • Weight: 0.05 lb
  • Width: 2.87 in

Certifications and Compliance

  • Industry Standard(s): UL Listed


  • Carton Quantity: 25


UPC 88377810213
Product Description Wallplates and Box Covers, Wallplate, Nylon, 1-Gang, 1) Duplex, Red
GTiN 00883778102134
Length 117.48 mm
Finish Gloss
Width 72.39 mm
Size Standard Sized
Color Red
Type Standard
Thickness 1.5 mm
Material Nylon
Applications Provides Protection Against Contact of live Terminals and Wiring
Height 0.25 in
Weight 0.05 lb
Family Brand Name Hubbell Wiring Device Kellems
Construction Molded
Number of Gangs 1 Gang
Orientation Vertical
Sub Brand Wallplates
Standard UL
