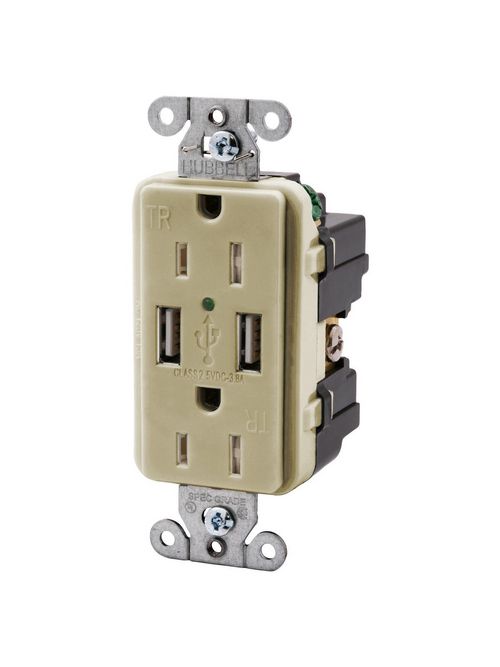

Hubbell Wiring Devices USB15X2I 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Ivory Decorator Duplex USB Charger Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$46.20/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device
Mfg Catalog # USB15X2I
World Electric Part # 804647

Features

  • Compatible with USB 1.1/2.0/3.0 devices, including Apple products
  • Tamper-Resistant decorator duplex receptacle
  • Two USB ports 3 Amp, 5V DC, type A, class 2.0
  • Green LED indicator to show USB power available
  • 15A
  • 125V
  • 2 Pole
  • 3 Wire Grounding

Ordering Information

  • Device Color: Ivory

Listings

  • cULus listed to UL498

Specifications

  • Clamp: Plated steel
  • Base: RTP
  • Face: RTP
  • USB Port: Stainless Steel
  • Terminal Screws: Plated steel
  • Mounting Strap: .040" Zinc plated steel
  • Contacts: Plated steel
  • LED: Green Indicator
  • Mounting Screws: Zinc plated steel

Performance

Electrical

  • Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage: Withstands 2,000V minimum

Mechanical

  • Product Identification: Ratings are a permanent part of the device
  • USB Port: Stainless steel Rated for 10,000 plug insertions and removal
  • Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only
  • Terminal Identification: Terminals identified in accordance with UL 498 and CSA

Environmental

  • Flammability: UL 94V-2
  • Operating Temperature: Maximum continuous 75°C; minimum -40°C (w/o impact)

Categories

Overview

UPC 88377830458
Product Description USB 15 A, 125V AC Charger Tamper-Resistant receptacle,Two USB Type 2.0 ports 3 Amp, 5 Volt DC
GTiN 00883778304583
Length 4.12 in
Width 1.75 in
Size Standard Sized Product
Color Ivory
Type Tamper-Resistant, Decorator
Material Nylon
Applications Commercial Specification Grade
Height 1.96 in
Wire Size 14-10 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Number of Phases 1 Phase
TC Connection Back and Side Wired Screw Terminals
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Voltage 125 Volt
Conductor Size 14-10 AWG
Mounting Type Flush
Connection Type Back and Side
Temperature Rating -40 to 75 C Continuous
Number of Ports 2
Contact Material Plated Steel
Blade Dimensions 1.31 in W x 1.96 in D x 4.12 in H
Environmental Conditions UL 94-V2 Flammability Rating
Base Material RTP
Face Material RTP
Wire Count 3
Tamper Resistant? Yes
Flamability Class UL 94V-2
Amperage 15 Amp
Screw Material Plated Steel
