Manufacturer | Ideal |
---|---|
Mfg Catalog # | 30-072 |
World Electric Part # | 623 |
UPC | 78325030072 |

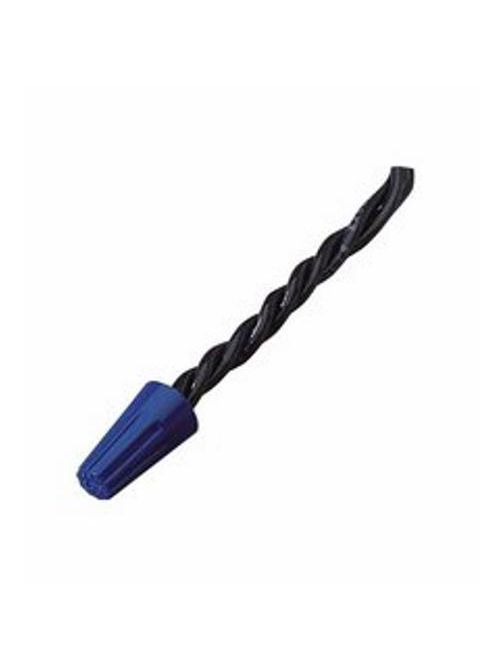

Product Description | The connector that started it all, an American Classic.The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come.With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.With five color-coded models available, Wire-Nut Wire Connectors will handle any job from as small as #22 gauge wire up to #6 gauge wire.Additionally, Models 71B, 72B, and 73B, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.The black high-temperature models are designed to withstand the extreme heat build-up found in high-wattage light fixtures and signs. |
GTiN | 00783250300723 |
Length | 0.7 in |
Finish | Zinc Plated |
Color | Blue |
Type | Twist-On |
Diameter | 0.39 in |
Material | Flame-Retardant Polypropylene |
Number of Conductors | 1 to 5 |
Conductor Size | 22-16 AWG |
Applications | Insulating or Joining 2 or more conductors |
Temperature Rating | 105 C |
Family Brand Name | Ideal |
Environmental Conditions | 105 C |
Sub Brand | Wire-Nut |
CA Prop65 Warning | ![]() |
Voltage | 300 Volt |
