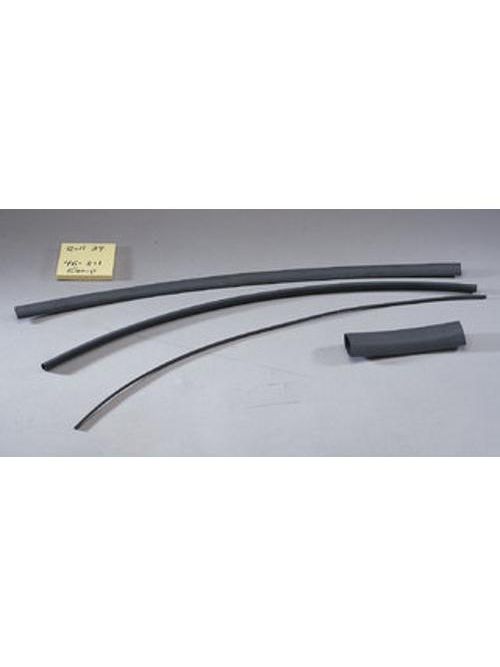

Ideal Industries 46-607 Thermo-Shrink Thin Wall Heat Shrinkable Tubing Disk
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 8 to 12 Days
Not Available at Jacksonville, FL
Available at These Locations
Already a Customer? Log in to view your pricing
Manufacturer Ideal
Mfg Catalog # 46-607
World Electric Part # 117


  • Polyolefin material electrically insulates and protects in-line components, disconnect terminals and splices with its high strength and excellent resilience
  • Use to bundle wires for very flexible light-duty harnesses
  • Highly flame-retardant and flexible; resistant to common fluids and solvents
  • Meets UL 486D 125°C VW-1 600V; Material: No PBB’s, PBBE’s, conforms to ROHS
  • 2:1 shrink ratio; Minimum shrink temperature: 70°C; Operating temperature: -55°C to +125°C
  • RoHS compliant
  • UV resistant


UPC 78325046607
Product Description IDEAL, Heat Shrinkable Tube, Thermo-Shrink®, Thin-Wall, Shrink Ratio: 2:1, Inside Diameter: 3/8 IN, Thickness: 022 IN, Length: 4 FT, Volume Resistivity: 1014 OHM CM For ASTM D 876 Test Method, Dielectric Strength: ASTM D 150, 20 KV/MM, Continuous Operating Temperature: -55 To 125 DEG C, Minimum Shrink Temperature: 70 DEG C, Heat Shock: UL 224, No Cracking (250 DEG C/4 HR), Cable Range: 8 - 4 AWG, Nominal Recoveredi.d. (max.): 0.185 IN, Expanded I.d. (min.): 0.421, Elongation At Break: 600 PCT ASTM D 638, Elongation Of Break After Aging: 350 PCT For UL 224 Test Method, Cold Bend Test (-55°c/4 Hours): No Cracking For UL 224 Test Method, Copper Corrosion: Pass For UL 224 Test Method, Chemical Resistance: Pass For UL 224 Test Method, Longitudinal Shrinkage: 0 Plus Or Minus 5 PCT For UL 224 Test Method, Eccentricity: 30 PCT For UL 224 Test Method, Normal Size: 3/8 IN, Package: Disk
GTiN 00783250466078
Length 4 ft
Color Black
Type Thin-Wall
Thickness 022 IN
Material Polyolefin
Shrink Ratio 2:1
Wire Size 10-25 mm
Temperature Rating -55 to 125 C
Family Brand Name Ideal
Dielectric Strength ASTM D 150, 20 KV/MM
Inside Diameter 3/8 IN
Sub Brand Thermo-Shrink
