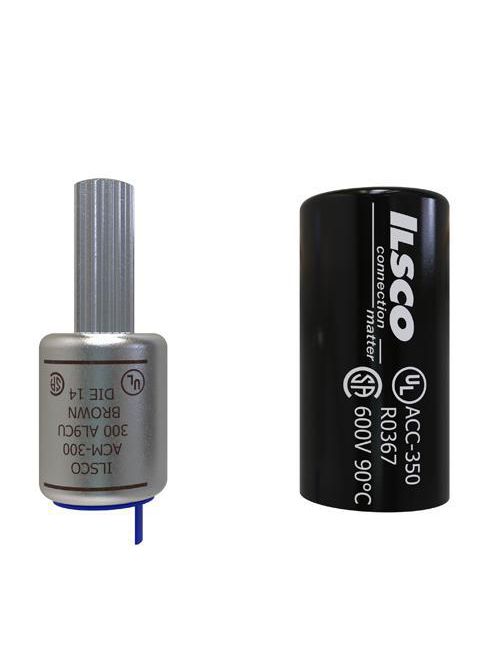

ILSCO ACM-300 UL CSA Listed 300 MCM Aluminum Compression Pin Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$30.79/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # ACM-300
World Electric Part # 2225

Specifications

  • UPC Code: 78366900918
  • UNSPSC Code: 39121448
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 300 kcmil
  • Conductor Size CU (Primary, run, main, line): 300 kcmil
  • Conductor Range AL Stranded (Primary, run, main, line): 300 kcmil
  • Conductor Size AL (Primary, run, main, line): 300 kcmil
  • Approximate Pin Size: 4/0 AWG
  • Length (IN): 3.835
  • Length (mm): 97.409
  • Width (IN): 1.29
  • Width (mm): 32.766
  • Height (IN): 1.29
  • Height (mm): 32.766
  • Weight (LB): 0.167
  • Barrel Length (IN): 1.41
  • Barrel Length (mm): 35.814
  • Cover Length (IN): 2.58
  • Cover Length (mm): 65.532
  • Inside Diameter (IN): 0.65
  • Inside Diameter (mm): 16.51
  • Mounting Hole Spacing (mm): 0
  • Outside Diameter (IN): 1.1
  • Outside Diameter (mm): 27.94
  • Pin Diameter (IN): 0.529
  • Pin Diameter (mm): 13.4366
  • Pin Length (IN): 1.34
  • Pin Length (mm): 34.036
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Supplied with insulating cover
  • Color: Silver
  • Die Color Code: Brown
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • Voltage Rating without cover: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 941R
  • UL File Number: E62525
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Barrel Marking: Ink
  • Barrel Type: Standard
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • Flared End: FALSE
  • ILSCOs Die Index Number: 14
  • Number of Conductors: 1
  • Number of Mounting Holes: 0
  • Replacement Parts: Cover
  • Sight Window: FALSE
  • Slotted: FALSE
  • Bag Quantity: 1
  • CrossSell: TB-12U1000-P

Overview

UPC 78366900918
Product Description ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180 connecting angle, Copper/Aluminum Primary Conductor 300 kcmil, Contains DE-OX, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Brown, primary color Silver, die index 14,
GTiN 00783669009187
Voltage 600 V
Type Long Sleeve, Round
Material Aluminum
Conductor Size 300 kcmil
Applications Terminating Connector
Standard CSA File Number: LR-29601,UL Specifications: UL 486A-B,UL File Number: E62525
Temperature Rating 90 C
Pkg Qty 10
Family Brand Name ILSCO
Contact Material Aluminum
Barrel Length 1.700 in
Pin Length 1.340 in
Color Coding Brown
Sub Brand ClearChoice
Size L:3.835;W:1.29;H:1.29 IN
Color Silver
Conductor Type Stranded
