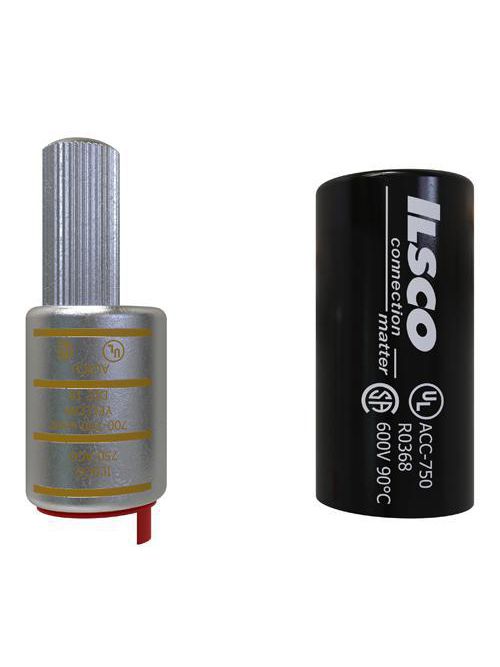

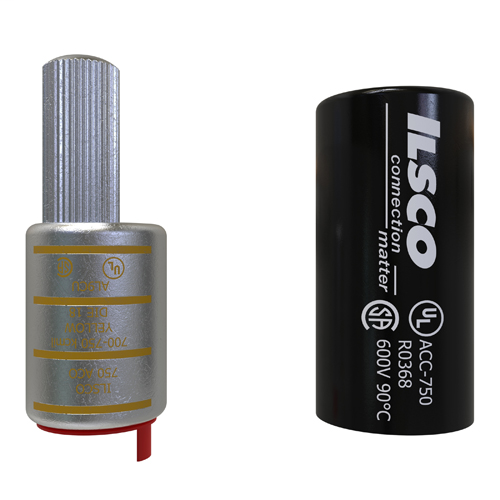

ILSCO ACO-750 UL CSA Listed 750 MCM Aluminum Compression Offset Pin Terminal
Product image thumbnail 0
Product image thumbnail 1
$56.99/ea
Usually ships within 8 to 12 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # ACO-750
World Electric Part # 649

Specifications

  • UPC Code: 78366900964
  • UNSPSC Code: 39121448
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil - 700 kcmil
  • Conductor Size CU (Primary, run, main, line): 750 kcmil,700 kcmil
  • Conductor Range AL Stranded (Primary, run, main, line): 750 kcmil - 700 kcmil
  • Conductor Size AL (Primary, run, main, line): 750 kcmil,700 kcmil
  • Approximate Pin Size: 500 kcmil
  • Length (IN): 5.005
  • Length (mm): 127.127
  • Width (IN): 1.64
  • Width (mm): 41.656
  • Height (IN): 1.64
  • Height (mm): 41.656
  • Weight (LB): 0.393
  • Barrel Length (IN): 2.03
  • Barrel Length (mm): 51.562
  • Cover Length (IN): 3.33
  • Cover Length (mm): 84.582
  • Inside Diameter (IN): 1.03
  • Inside Diameter (mm): 26.162
  • Mounting Hole Spacing (mm): 0
  • Outside Diameter (IN): 1.453
  • Outside Diameter (mm): 36.9062
  • Pin Diameter (IN): 0.81
  • Pin Diameter (mm): 20.574
  • Pin Length (IN): 1.76
  • Pin Length (mm): 44.704
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Insulation: Supplied with insulating cover
  • Color: Silver
  • Die Color Code: Yellow
  • Temperature Rating: 90°C
  • Voltage Rating: 600 V
  • Voltage Rating without cover: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 941R
  • UL File Number: E62525
  • UL / CULUS Specification: UL 486A/B Listed
  • Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Barrel Marking: Ink
  • Barrel Type: Standard
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded
  • Contains DE-OX: TRUE
  • Flared End: FALSE
  • ILSCOs Die Index Number: 18
  • Number of Conductors: 1
  • Number of Mounting Holes: 0
  • Replacement Parts: Cover
  • Sight Window: FALSE
  • Slotted: FALSE
  • Bag Quantity: 1
  • CrossSell: TB-12U1000-P

Overview

UPC 78366900964
Product Description ILSCO Aluminum Offset Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180 connecting angle, Copper/Aluminum Primary Conductor 750 kcmil, 700 kcmil, Contains DE-OX, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Yellow, primary color Silver, die index 18,
GTiN 00783669009644
Color Yellow
Voltage 600 V
Type Long, Round, Offset
Material Aluminum
Conductor Size 700 - 750 MCM
Applications Terminating Connector
Standard CSA File Number: LR-29601,UL Specifications: UL 486A-B,UL File Number: E62525
Temperature Rating 90 C
Family Brand Name ILSCO
Contact Material Aluminum
Barrel Length 2.030 in
Pin Length 1.760 in
Color Coding Yellow
Sub Brand ClearChoice
Size L:5.005;W:1.64;H:1.64 IN
Conductor Type Stranded
