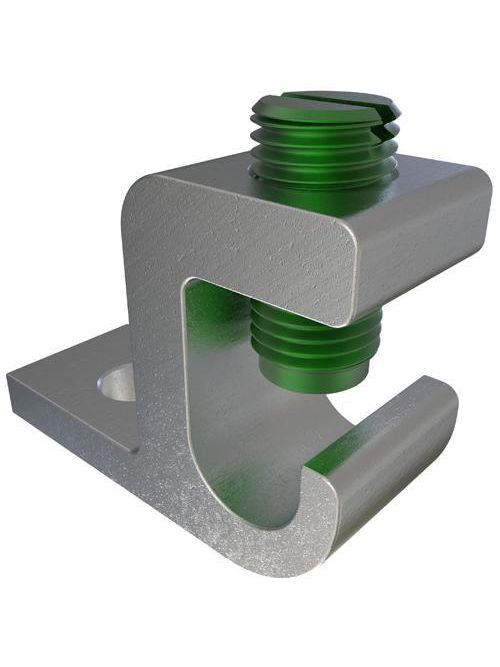

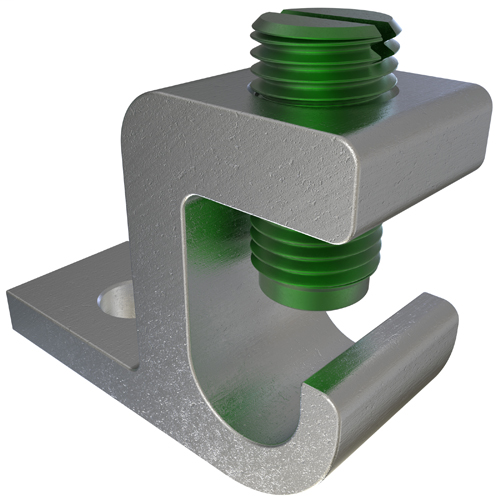

ILSCO GBL-1/0 UL Listed 1/0-14 AWG 9/32 Inch Mounting Hole Aluminum Ground Clamp
$2.39/ea
149 Available for Delivery
Order by 04:00pm Thursday for Delivery Friday
149 Available for Pickup at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # GBL-1/0
World Electric Part # 500

Specifications

  • UPC Code: 78366996010
  • UNSPSC Code: 39121408
  • Dual Rated: TRUE
  • Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str - 14 Str
  • Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 14 Sol
  • Conductor Size CU (Primary, run, main, line): 10 Sol,12 Sol,14 Sol,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
  • Drive Type Main: Slotted
  • Mounting Bolt/Stud Size: 1/4/2020
  • Wire Binding Screw Size (mm): 965.2
  • Wire Binding Torque: 1/0 - 6 AWG = 45,8 AWG = 40,10 - 14 AWG = 35
  • Length (IN): 1.63
  • Length (mm): 41.402
  • Width (IN): 0.63
  • Width (mm): 16.002
  • Height (IN): 1.16
  • Height (mm): 29.464
  • Weight (LB): 0.073
  • Dimension G (IN): 0.44
  • Tang Thickness (IN): 0.19
  • Material: Aluminum
  • Conductor Material: Copper,Aluminum
  • Connector Finish: Tin
  • Wire Binding Hardware Material: Stainless steel
  • Wire Binding Hardware Finish: Nickel Strick, Zinc, Green Dye
  • UL File Number: E34440
  • UL / CULUS Specification: UL 467 Listed
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Connection: Mechanical
  • Conductor Type: Solid,Stranded
  • Mounting Kit Hardware Part #: GBL-MH3
  • Number of Conductors: 1
  • Number of Mounting Holes: 1
  • Number of Ports / Wireways: 1
  • Bag Quantity: 1

Overview

UPC 78366996010
Product Description ILSCO Lay-in Ground Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 467 Listed, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted,
GTiN 00783669960105
Finish Electro-Tin Plated
Type Dual Rated, Lay-In
Material High Strength 6061-T6 Aluminum
Stud Size 1/4 in
Conductor Size 1/0 AWG Stranded - 14 AWG Solid
Connector Type Clamp Screw
Applications Lay-in Ground Lug
Standard UL Specifications: UL 467 Recognized,UL File Number: E34440
Pkg Qty 50
Family Brand Name ILSCO
Conductor Material Copper or Aluminum
Conductor Type Solid/Stranded
Blade Dimensions 1-5/8 in L x 5/8 in W x 1-5/32 in H
Mounting Hole Size 9/32 in
Sub Brand ClearChoice
Number of Conductors 1
TC Connection Mechanical
