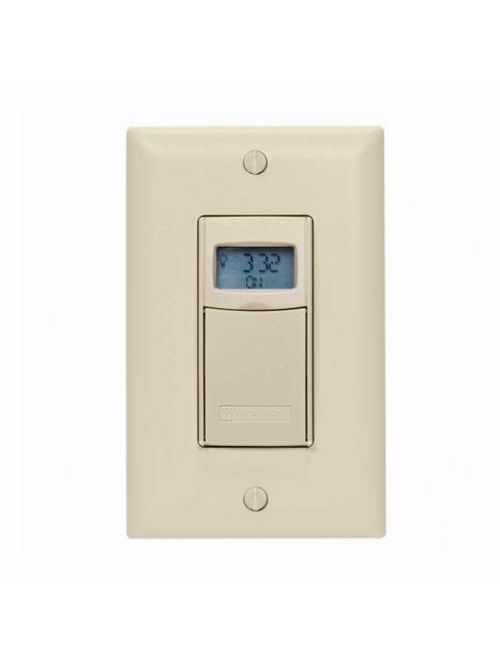

Intermatic EI400C 120 to 277 VAC 12 to 28 VDC 20 Amp 1-Pole 3-Way Ivory Digital Auto-Off In-Wall Timer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$87.99/ea
Usually available within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic, Inc
Mfg Catalog # EI400C
World Electric Part # 269645

Features & Applications

Features

  • Programmable countdown time interval from one-second to 24-hours
  • Settings stored in non-volatile memory
  • Optional audible and/or visual warning of impending load switch OFF
  • Lockable settings help avoid unintended changes
  • Single pole or 3-way switch compatible installation
  • Incandescent/fluorescent/CFL/LED compatible
  • Isolated switch allows timer to be used with any load type including AC and DC loads
  • Replaceable CR2 lithium battery provides up to three years of operation
  • No neutral wire connection enables easy retrofitting and quicker installation

Applications

  • Bathroom Fans
  • Spas
  • Hot Tubs
  • Storage Closets
  • Garage Lights

Specifications

  • Color: Ivory
  • Wiring Configurations: 3-Way, Single
  • Time Presets: Programmable
  • Hold Mode Included: No
  • Battery Type: CR2 Lithium
  • Neutral Connection Required: No
  • Input Voltages Display: 120-277 VAC, 12-28 VDC, 50/60 Hz
  • Incandescent Load Ratings (Multi-Gang): 15 A, 120 VAC, 50/60 Hz 6 A, 208-277 VAC, 50/60 HZ
  • Inductive: 16 A, 208-277 VAC, 50/60 Hz
  • Motor: 1 HP, 120 VAC, 50/60 Hz 2 HP, 240 VAC, 50/60 Hz
  • Operating Temperature Max (°C): 50
  • Operating Temperature Max (F): 122
  • Operating Temperature Min (°C): 0
  • Operating Temperature Min (F): 32
  • Product Weight (kg): 0.181
  • Product Weight (lbs): 0.399
  • Product Height (in): 4.125
  • Product Height (mm): 104.8
  • Product Width (in): 1.75
  • Product Width (mm): 44.5
  • Product Depth (in): 1.1875
  • Product Depth (mm): 30.2
  • Warranty: 5-year limited

Documents & Downloads

Product Rating

Overview

UPC 07827510137
Product Description Offering a programmable countdown time between one-second and 24-hours, this versatile timer can handle any application, regardless of load type. No neutral connection is required
GTiN 00078275101371
Warranty Length 5 yr
Width 1.75 in
Size 2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Color Ivory
Operating Temperature 122 degrees F
Voltage 127 Volt
Type Decorator Digital Auto-Off In-Wall
Applications CFL Lighting, LED Lighting, HVACR
Mounting Type Wall Mount
Depth 1.1875 in
Height 4.125 in
Weight 0.399 lb
Standard CCSAus Certified,California TITLE 24 Compliant,HVACR
Frequency 50/60 Hz
Wattage 5540 Watt
Input Voltage 12-28 V
Family Brand Name Intermatic
Contact Configuration 1 NO
Amperage 20 Amp
Max Operating Temperature 122 degrees F
Min Operating Temperature 32 degrees F
Contact Rating 20 AMP @ 120 - 277 VAC (Resistive Heater), 15 AMP @ 120 VAC (Tungsten Incandescent), 6 AMP @ 208 - 277 VAC (Tungsten Incandescent), 16 AMP @ 120 - 277 VAC (Ballast Magnetic), 4 AMP @ 12 VDC (DC Loads), 2 AMP @ 28 VDC (DC Loads)
Number of Poles 1 Pole
Action SPST
