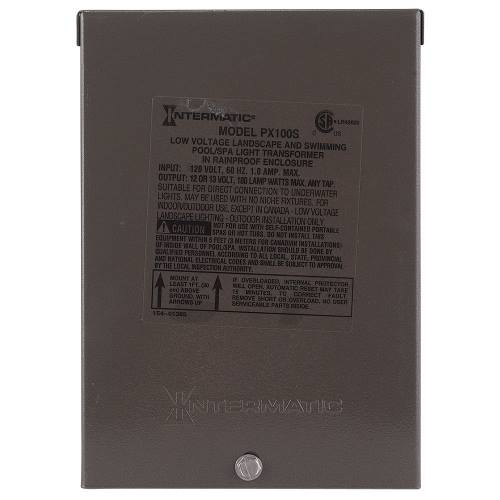

Intermatic PX100S 120 VAC 1 Amp Primary 13 VAC Secondary 100 W Safety Transformer with Stainless Steel Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$162.95/ea
Usually ships within 11 to 17 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic, Inc
Mfg Catalog # PX100S
World Electric Part # 1095

Features & Applications

Features

  • Mounting brackets on the top and bottom
  • Built-in circuit protection disconnects power temporarily in case of overload
  • Complies with NEC Code 680.23 requirements for underwater luminaries

Applications

  • LED Pool Lights
  • Submersible Fixtures
  • Outdoor Landscape
  • Decorative Lighting

Specifications

  • Input Voltages Display: 120 VAC, 60 Hz
  • Output Voltages: 12 VAC, 13 VAC
  • Maximum Power Consumption (W): 100 W
  • Other Certifications: NEC Code 680.23
  • Warranty: 1-year

Documents & Downloads

Product Rating

Related Accessories and Parts

  • ET-NF: RC Snubber Noise Filter 24-277VAC/DC for Electronic Controls

Overview

MDM UPC 07827506756
GTiN 00078275067561
Warranty Length 1 yr
Size 7-1/4 HEIGHT X 5-1/4 WIDTH X 4-1/2 DEPTH IN, 18.4 HEIGHT X 13.3 WIDTH X 11.4 DEPTH CM
Type Safety Transformer
Applications Pool or Garden Lighting, Spa Lighting, Fountain Lighting
Mounting Type Bracket Mount
Standard CCSAus Certified
Frequency 60 Hz
Wattage 100 Watt
Input Voltage 120 V
Family Brand Name Intermatic
Output Voltage 12 V
Enclosure Type 3R Stainless Steel
