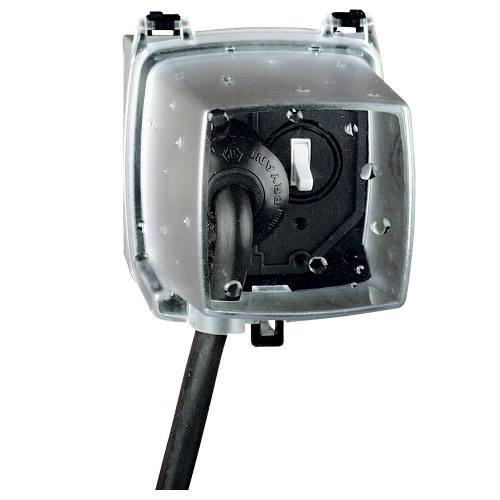

Intermatic WP1250C 2-Gang Vertical Hinge 4-3/4 Inch Receptacle Cover with Guard Insert
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$31.29/ea
Usually available within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic, Inc
Mfg Catalog # WP1250C
World Electric Part # 844

Features & Applications

Applications

  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields

Specifications

  • Gang Type: Double
  • Color: Clear
  • Is Extra Duty Rated: No
  • Hinge Direction: Vertical
  • Insert Types Included: WP217
  • Number of Included Inserts: 6
  • Weatherproof Cover Material: UV Stabilized Plastic
  • Product Height (in): 6
  • Product Height (mm): 152.4
  • Product Width (in): 5
  • Product Width (mm): 127
  • Product Depth (in): 4 3/4
  • Product Depth (mm): 121
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Related Accessories and Parts

  • WP217: Double-Gang Inserts

Categories

Overview

UPC 07827507271
Product Description Plastic in-use covers are easy to install and with gasket, mounting screws, base cover assembly and patented inserts for serve applications, such as schools and commercial buildings. 3 patented inserts for GFCI, duplex, toggle or round receptacles. 2-gang models include 6 snap-together, rotating, inserts that create 70 combinations. 1-gang covers mount vertically and horizontally. Heavy-duty polycarbonate construction. Pre-adhered gasket. Meets requirements for cold impact testing -60F.
GTiN 00078275072718
Warranty Length 1 yr
Width 5 in
Size 4-3/4 DEPTH IN, 120.65 DEPTH MM
Color Clear
Type Rectangular, Receptacle, Jumbo
Insulation Type Neoprene Gasket
Material Heavy Duty Polycarbonate
Applications Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools
Mounting Type Vertical
Depth 120.65 mm
Height 6 in
Cable Size (2) 14 Gauge, (1) 10 Gauge
Standard 2008 NEC Article 406.8,UL Certified For Type 3R,UL/CSA Cold Impact Testing
Shape Rectangle
Family Brand Name Intermatic
Insulation Material Neoprene Gasket
Construction Heavy-Duty Polycarbonate
Number of Outlets 2
Gang Type Double
Construction Features Heavy-Duty Polycarbonate
