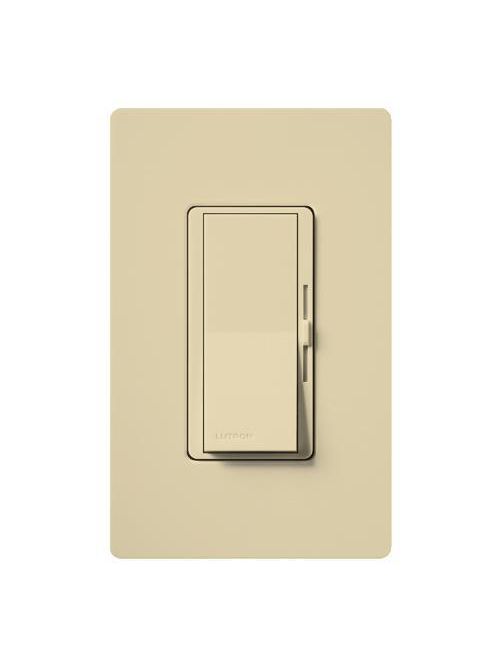

Lutron Electronics DVELV-303P-IV 300 W 120 Volt Ivory 3-Way Electronic Low Voltage Dimmer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$153.95/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # DVELV-303P-IV
World Electric Part # 2243

Features

  • Controls 300 W electronic low-voltage loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim.

Specifications

  • Wattage: 300 W
  • Sub Brand: Diva
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Type: Dimmer, 3-way
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Application: Lighting Control
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.29 L
  • Length Imperial: 2.25 IN
  • Width Imperial: 2.25 IN
  • Height Imperial: 4.5 IN
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Country of Origin: US

Overview

UPC 02755775833
Product Description Diva Dimmer - Gloss Finish, Electronic Low-Voltage, 3-way, 120V/300W in ivory
GTiN 00027557758338
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Color Ivory
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type 3-Way, 1-Pole
Material Metal,Plastic
Terminal Type Wire Lead
Applications Lighting Control
Mounting Type Wall Box, Flush, Screw
Country of Origin USA
Standard CSA,NOM,UL
Frequency 60 Hz
Connection Type Wire Leads
Wattage 300 Watt
Temperature Rating 0 - 40 C
Family Brand Name Lutron
Insulation Material Plastic
Power Rating 300 W
TC Connection Wire Leads
Actuator Paddle Switch
Max Wattage 300 W
Blade Dimensions 75 mm W x 33 mm D x 119 mm H
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Bulb Compatibility Electronic Low Voltage
Sub Brand Diva
