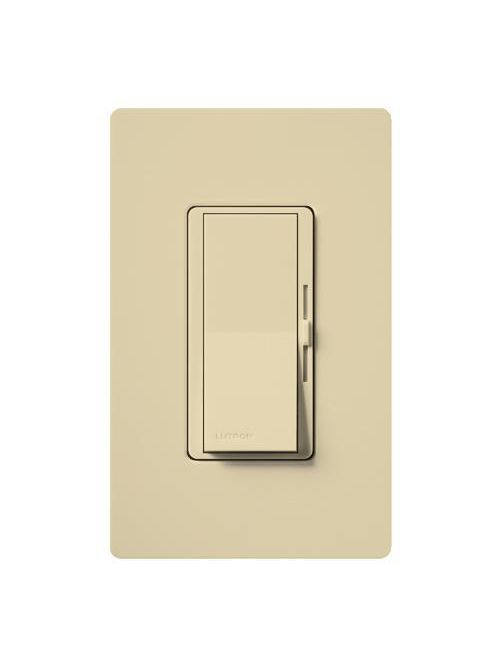

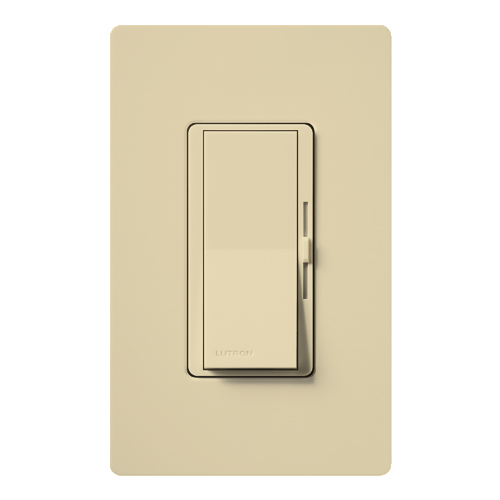

Lutron Electronics DVLV-600PH-IV 450 W 120 Volt Ivory 1-Pole Magnetic Low Voltage Paddle Switch Preset Dimmer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$82.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # DVLV-600PH-IV
World Electric Part # 824

Features

  • Controls 600 VA (450 W) magnetic low-voltage loads
  • Paddle turns on/off
  • Slide up to brighten, down to dim.

Specifications

  • Wattage: 450 W
  • Sub Brand: Diva
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Actuator: Paddle switch
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Voltage Rating: 120 VAC
  • Application: Lighting Control
  • Size: 4.69 in (119 mm) x 2.94 in (75 mm)
  • Pack Description: Clamshell
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.3 L
  • Length Imperial: 3.9 IN
  • Width Imperial: 2.57 IN
  • Height Imperial: 5.85 IN
  • Operating Temperature: 0 to 40 degrees Celsius
  • Type: Dimmer, single-pole, clamshell packaging
  • Country of Origin: US

Categories

Overview

UPC 02755774812
Product Description Diva Dimmer - Gloss Finish, Magnetic Low-Voltage, Single-pole, 120V/600VA (450W) clamshell packaging in ivory
GTiN 00027557748124
Size 4.69 in (119 mm) x 2.94 in (75 mm)
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Clamshell Packaging,Dimmer,Single-pole
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin USA
Standard CSA,NOM,UL
Frequency 60 Hz
Connection Type Wire Leads
Wattage 450 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Paddle Switch
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Diva
