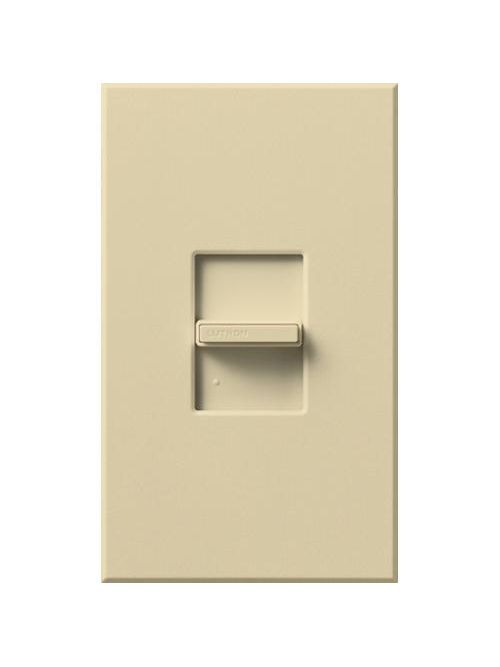

Lutron Electronics NF-103P-IV 16 Amp 120 VAC Ivory 1-Pole/3-Wire/3-Way Fluorescent Preset Dimmer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$226.95/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # NF-103P-IV
World Electric Part # 2419

Features

  • Controls 8 A LED driver/3-wire fluorescent ballast loads
  • Button turns on/off to slider level
  • Slide up to brighten, down to dim.

Specifications

  • Wattage: 960 W
  • Actuator: Slide
  • Sub Brand: Nova
  • Mounting: Wallbox
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Voltage Rating: 120 V
  • Connection: Wire Leads
  • Frequency Rating: 60 Hz
  • Material: Plastic/Metal
  • Application: Lighting Control
  • Type: Preset dimmer, 3-way/single-pole
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.6 L
  • Length Imperial: 5.156 IN
  • Width Imperial: 5.25 IN
  • Height Imperial: 3.688 IN
  • Size: 4.56 in (116 mm) x 2.75 in (70 mm)
  • Operating Temperature: 0 to 40 degrees Celsius
  • Standard: UL CSA NOM, ANSI/IEEE Std. C62.41-1980
  • Country of Origin: KN

Overview

UPC 02755734988
Product Description Nova Dimmer, Fluorescent or LED Dimming with 3-Wire Ballasts and Drivers, 3-way/single-pole (small control), preset, 120V/8A in ivory
GTiN 00027557349888
Size 4.56 in (116 mm) x 2.75 in (70 mm)
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type 3-Way/Single-Pole,Preset Dimmer
Material Metal,Plastic
Applications Lighting
Mounting Type Wallbox
Country of Origin Saint Kitts and Nevis
Standard ANSI/IEEE Std. C62.41-1980,UL CSA NOM
Frequency 60 Hz
Connection Type Wire Leads
Wattage 960 Watt
Family Brand Name Lutron
Insulation Material Plastic
TC Connection Wire Leads
Actuator Slide
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Nova
