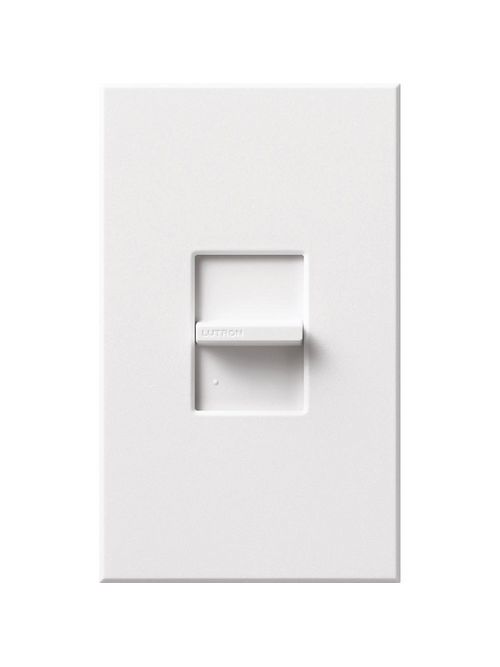

Lutron Electronics NTF-10-WH 120 VAC White 1-Pole Fluorescent Slide Dimmer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$246.95/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Lutron
Mfg Catalog # NTF-10-WH
World Electric Part # 2107

Features

  • Controls 16 A LED driver/3-wire fluorescent ballast dimmer loads
  • Slide up to brighten, down to dim.

Specifications

  • Actuator: Slide
  • Wattage: 1920 W
  • Mounting: Wallbox
  • Sub Brand: Nova T
  • Brand Name: Lutron
  • Enclosure: Plastic
  • Number Of Poles: 1
  • Insulation: Plastic
  • Voltage Rating: 120 V
  • Connection: Wire Leads
  • Standard: UL, CSA, NOM
  • Material: Plastic/Metal
  • Application: Lighting Control
  • Frequency Rating: 50 to 60 Hz
  • Type: Slide-to-off dimmer, single-pole
  • Size: 4.56 in (116 mm) x 2.75 in (70 mm)
  • Pack Description: Box
  • Pack Type: EA
  • Number of Sub Packs: 1
  • Total Units Imperial: 1 EA
  • Gross Weight per Pack Imperial: 0.54 L
  • Length Imperial: 4.063 IN
  • Width Imperial: 5.219 IN
  • Height Imperial: 2.844 IN
  • Operating Temperature: 0 to 40 degrees Celsius
  • Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
  • Country of Origin: US

Overview

UPC 02755768285
Product Description Nova T Dimmer, Fluorescent or LED Dimming with 3-Wire Ballasts and Drivers, Single-pole (small control), 120V/16A in white
GTiN 00027557682855
Size 4.56 in (116 mm) x 2.75 in (70 mm)
Operating Temperature 0 - 40 C
Voltage 120 Volt
Type Slide-to-Off
Material Plastic
Applications For LED Driver/Fluorescent Ballast Lighting Control
Mounting Type Wallbox
Country of Origin USA
Standard CSA,NOM,UL
Frequency 50 Hz
Connection Type Wire Lead
Wattage 1920 Watt
Family Brand Name Lutron
Insulation Material Plastic
Power Rating 1920 W
TC Connection Wire Leads
Actuator Slide
Blade Dimensions 2-3/4 in W x 1.29 in D x 4.56 in H
Environmental Conditions 0 - 90% RH Non-Condensing, Indoor Use Only
Enclosure Material Plastic
Number of Poles 1 Pole
Enclosure Plastic
Sub Brand Nova T
