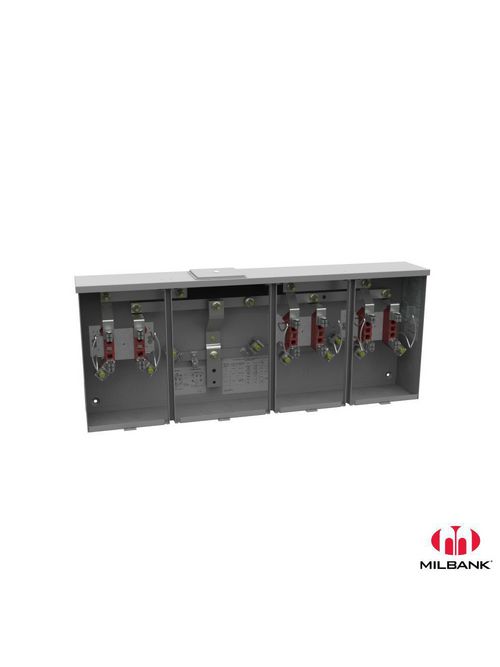

Milbank U1253-X-HSP 300 VAC 200 Amp 4-Terminal 1-Phase 3-Position Ringless Center Wireway Meter Socket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$618.95/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank Mfg. Co
Mfg Catalog # U1253-X-HSP
World Electric Part # 1136

Specifications

  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 300 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 5.125L x 34.5W x14H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Overhead or Underground with Center Wireway
  • Terminal: 3/8 Inch Stud
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: 3 Positions
  • Equipment Ground: Ground Lug
  • Hub/Closing Plate: Large Closing Plate
  • Number of Receptacles: 0
  • Height: 14 IN
  • Length: 5.125 IN
  • Width: 34.5 IN
  • UNSPSC Number: 39121102
  • Product Family Code: G200
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457230098
Product Description 4 TERM RNGLS LRG CLS PLT 3 POS STN-STL HSP
GTiN 00784572300989
Length 5.125 in
Width 34.5 in
Size 5.125L x 34.5W x 14H
Voltage 300 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type 3/8 Inch Stud
Applications Meter Socket
Mounting Type Surface Mount
Height 14 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 200 Amp
Hub Style Large Closing Plate
Cable Entry Overhead Or Underground With Center Wireway
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
