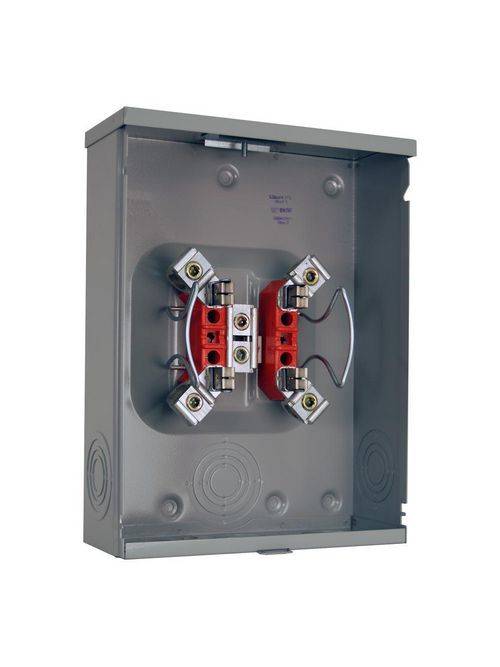

Milbank U7040-XL-TG-HSP 600 VAC 200 Amp 4-Terminal 1-Phase 1-Position Ringless Overhead/Underground Meter Socket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$64.99/ea
Usually ships within 8 to 12 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank Mfg. Co
Mfg Catalog # U7040-XL-TG-HSP
World Electric Part # 671

Specifications

  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Special Features: Stainless Steel Hasp
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 600 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.125L x 11W x14.563H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Triplex Ground
  • Hub/Closing Plate: Small Closing Plate
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Number of Receptacles: 0
  • Height: 14.563 IN
  • Length: 4.125 IN
  • Width: 11 IN
  • UNSPSC Number: 39121102
  • Product Family Code: 4T20
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457230081
Product Description 4 TERM RNGLS SML CLS PLT TRIPLEX GND STN-STL HSP
GTiN 00784572300811
Length 4.125 in
Width 11 in
Size 4.125L x 11W x 14.563H
Voltage 600 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Lay In
Applications Meter Socket
Mounting Type Surface Mount
Height 14.563 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 200 Amp
Hub Style Small Closing Plate
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
