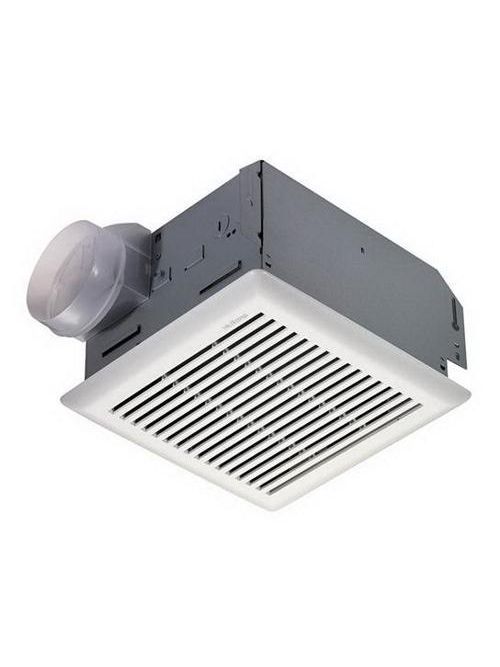

Broan 672R 0.7 Amp 110 CFM 4 Sones 10-1/2 x 10-1/4 Inch Grille Ventilation Fan
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$116.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Nutone
Mfg Catalog # 672R
World Electric Part # 941

Overview

A powerful fan that provides basic ventilation for average sized bathrooms or powder rooms, it solves one more problem on your to-do list.

  • 110 CFM quickly reduces humidity to eliminate odors and fogged mirrors in bathrooms up to 100 square feet, so your vision will always be clear and your surroundings will always be comfortable
  • Centrifugal blower wheel and 4-pole motor deliver a moderate 4.0 Sone sound level
  • 4" duct connector for installation flexibility
  • UL Listed for use over tub or shower with a GFCI circuit means you can
  • Available in project packs to support building projects

Specifications

  • Heater Wattage: N/A
  • Housing Dimension LxWxH: 9" x 9" x 5-3/4"
  • Warranty: 1 Year
  • Grille Length: 10-1/4"
  • Project Pack: No
  • Duct Size: 4"
  • ENERGY STARĀ® Most Efficient 2015: No
  • Nightlight: No
  • Watts @ 0.1" (Max CFM): N/A
  • Grille Diameter: N/A
  • Housing Height: 5-3/4"
  • Light Bulb Quantity: N/A
  • Motor engineered for continuous operation: No
  • Watts @ 0.25": N/A
  • Light Bulb Wattage: N/A
  • Sones 6" to 4" reducer: N/A
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
  • Grille Finish: White Polymeric
  • Grille Width: 10-1/2"
  • Motion Sensing: No
  • CSA: Yes
  • Globe Glass Color: N/A
  • CFM @ 0.25": N/A
  • Rated Sones - Vertical: N/A
  • Product Weight (Pounds): 6
  • CFM @ 0.10": 110
  • Wall Installation: Yes
  • Baths up to () Sq Ft: 105
  • Housing Length: 9"
  • Humidity Sensing: No
  • Color: White
  • Duct Direction: Horizontal
  • ENERGY STARĀ® qualified: No
  • Ceiling Installation: Yes
  • HVI Certified: Yes
  • Housing Width: 9"
  • Minimum construction space required: 2" x 6"
  • Rated Amps: 1.2
  • Rated Sones: 4
  • Lighting Type: No Light
  • cUL Listed: Yes
  • Light Bulbs Included: No
  • Rated Watts: N/A
  • Watts @ 0.1": N/A

Video Links

Resources

Overview

MDM UPC 78489125654
GTiN 00784891256547
Warranty Length 1 yr
Color White
Type Standard/Economy Fan
Applications For Bathrooms Up To 105 SQ-FT And Other Rooms Up To 135 SQ-FT
Weight 6 lb
Standard HVI 2100 Certified,UL Listed
Family Brand Name Broan-Nutone
Rated Sones 4
Light Type No Light
Amperage 1.2 Amp
Grille Width 10-1/2 in
Housing Length 9 in
Duct Size 4 in
Grille Length 10-1/4 in
Housing Height 5-3/4 in
Housing Width 9 in
Nightlight No
Grille Material Polymeric
