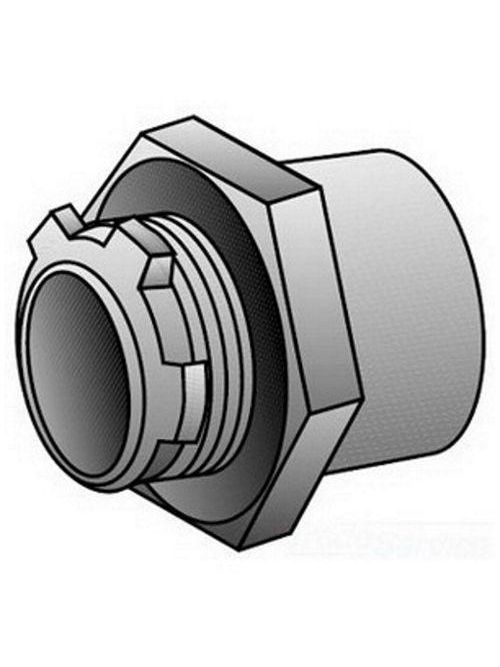

O-Z/Gedney CHM-400 4 Inch RMC/IMC Conduit Hub
$145.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer OZ-Gedney Co.
Mfg Catalog # CHM-400
World Electric Part # 576
OZ-Gedney Type CHM Raintight Conduit Hub, Size: 4 IN, Malleable Iron, Finish: Zinc Electroplated, Connection: Male X 4-8 Tapered FNPT, Dimensions: 5-5/8 IN Diameter X 3 IN Length, Box Wall Thickness: 11/16 IN, Third Party Certification: UL File Number 11853 For Use In Wet Locations, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2

Catalog No.18, Federal Specification W-F-408E, NEMA : FB-1, NEMA : 4, NEMA : 12, Hazardous Locations: Class I, Division 2/Class II, Division 1, 2/Class III, Division 1, 2 Per NEC 501-4(b), 501.10(b)(4), 502-4(a)(2), 503-3(a), For Rigid Conduit And IMC

Categories

Overview

UPC 78312619409
Product Description OZ-Gedney Type CHM Raintight Conduit Hub, Size: 4 IN, Malleable Iron, Finish: Zinc Electroplated, Connection: Male X 4-8 Tapered FNPT, Dimensions: 5-5/8 IN Diameter X 3 IN Length, Box Wall Thickness: 11/16 IN, Third Party Certification: UL File Number 11853 For Use In Wet Locations, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1, NEMA : 4, NEMA : 12, Hazardous Locations: Class I, Division 2/Class II, Division 1, 2/Class III, Division 1, 2 Per NEC 501-4(b), 501.10(b)(4), 502-4(a)(2), 503-3(a), For Rigid Conduit And IMC
GTiN 00783126194098
Finish Zinc Electroplated
Size 4 IN
Type Type CHM Raintight Conduit Hub
Material Malleable Iron
Applications For Rigid Conduit And IMC
Family Brand Name O-Z/Gedney
TC Connection Male X 4-8 Tapered FNPT
