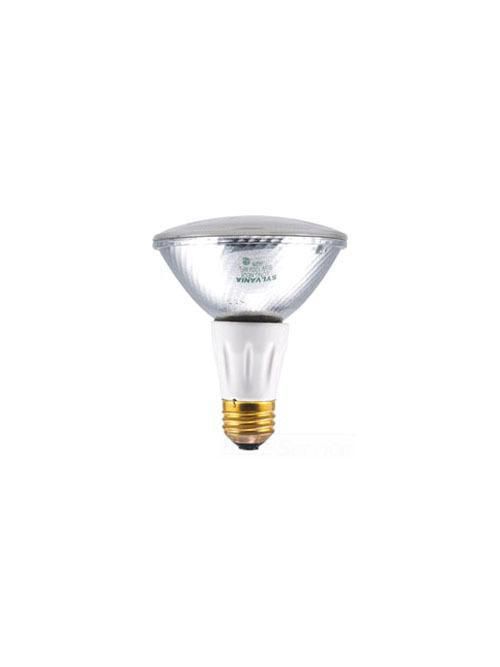

Sylvania 14785 130 Volt 75 W Wide Flood E26 Medium Base PAR30 Long Neck Halogen Lamp
$46.29/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Osran Sylvania
Mfg Catalog # 14785
World Electric Part # 319

Product Information

  • Vertical Beam Angle (deg): 50
  • Nominal Wattage (W): 75.00
  • Diameter (mm): 95.30
  • Abbrev. With Packaging Info.: 75PAR30LNHALWFL50 130V 15/CS 1/SKU
  • Filament: CC-8
  • Horizontal Beam Angle (deg): 50
  • Family Brand Name: CAPSYLITE┬« PAR30 Long Neck
  • Bulb: PAR30LN
  • Lamp Finish: Reflector
  • Color Temperature/CCT (K): 2900
  • Color Rendering Index (CRI): 100
  • Average Rated Life (hr): 2500
  • Beam Type: WFL
  • Beam Angle (deg): 50
  • Nominal Voltage (V): 130.00
  • Maximum Overall Length - MOL (in): 4.625
  • Class: C (gas)
  • Approx. Lumens: 1130
  • Diameter (in): 3.752
  • Centerbeam Candlepower (cp): 1100
  • Ecologic: YES
  • Base: E26 Medium
  • Maximum Overall Length - MOL (mm): 119.0625

Additional Product Information

Packaging Information

  • Pallet Qty: 1080
  • Case Cube (ft): 0.663
  • SKU UPC: 046135147852
  • Cases/Pallet: 72
  • Case Depth (in): 5.625
  • Case Weight (lbs): 9.000
  • SKU Qty: 1
  • SKU's/Pallet: 1080
  • Case Width (in): 11.125
  • Case Length (in): 18.313
  • SKU's/Case: 15
  • Case Qty: 15



Product Documents, Graphs, and Images

Footnotes

  • For indoor or outdoor use where not directly exposed to weather. Exposure to weather may damage the bulb.
  • Approximate life for 130 volt tungsten halogen lamps operated at 120 volts is within the value calculated using the recommended equations for standard incandescent lamps, as set forth in the IES Handbook, 8th edition. Because of the uncertain nature of the halogen cycle on the coil when operated at less than rated voltage, life of tungsten halogen lamps varies considerably and unpredictably. OSRAM SYLVANIA does not recommend operation at other than rated voltage.
  • In base up operation, heat may eventually deteriorate paper-lined or plastic sockets.
  • State of the Art SPL Optics
  • @ 120 volts, approximate 66 watts, 860 lumens, 5000 hours

Overview

UPC 04613514785
Family Brand Name Sylvania
Product Description Tungsten Halogen CAPSYLITE PAR30 Long Neck Reflector Lamp Medium Base 75Watt 130Volt Wide Flood Beam
GTiN 00046135147852
Finish Reflector
Voltage 130 Volt
Diameter 3.752 in
Applications Directional
Bulb Type PAR30LN
Wattage 75 Watt
Color Temperature 2,900 K
Lumens 1,130 LM
Base E26 Medium
Average Rated Life 2500 hr
Color Rendering Index 100
Beam Angle 50 DEG
