Panduit BT2S-C 100/Pack Metal Barb 8.0 Inch 203 mm Standard Cross Section Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$27.79/c (100 ea)
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit Corp
Mfg Catalog # BT2S-C
World Electric Part # 2240

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Natural
  • Environment: Indoor
  • Sub Brand: Dome-Top®
  • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
  • Material: Nylon 6.6
  • Resistance Properties: NA
  • Maximum Bundle Diameter (In.): 2
  • Maximum Bundle Diameter (mm): 51
  • Maximum Installation Temperature (°C): 0
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Bundle Diameter (mm): 1.5
  • Minimum Bundle Diameter (In.): 0.06
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Loop Tensile Strength (lb): 50
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Overall Length (In.): 8
  • Overall Length (mm): 203
  • Body Width (mm): 4.7
  • Body Width (In.): 0.185
  • Body Thickness (In.): 0.045
  • Body Thickness (mm): 1.2
  • Standards Met: UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Complaint
  • Military Cross Reference Number: MS3367-1-9

Packaging Details

  • UPC: 07498341176
  • GTIN Package: 00074983411764
  • Standard Package Volume Ft3: 0.0321
  • Standard Package Weight Pounds: 0.3517
  • Std Package Height In: 1.45
  • Std Package Height MM: 36.83
  • Std Package Length In: 9.55
  • Std Package Length MM: 242.57
  • Std Package Width In: 5.65
  • Std Package Width MM: 143.51
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983411769
  • Standard Carton Volume Ft3: 0.0321
  • Standard Carton Weight Pounds: 3.5169
  • Std Carton Height In: 6.2
  • Std Carton Height MM: 157.48
  • Std Carton Length In: 10.5
  • Std Carton Length MM: 242.57
  • Std Carton Width In: 8.35
  • Std Carton Width MM: 212.09
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983411764
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498341176

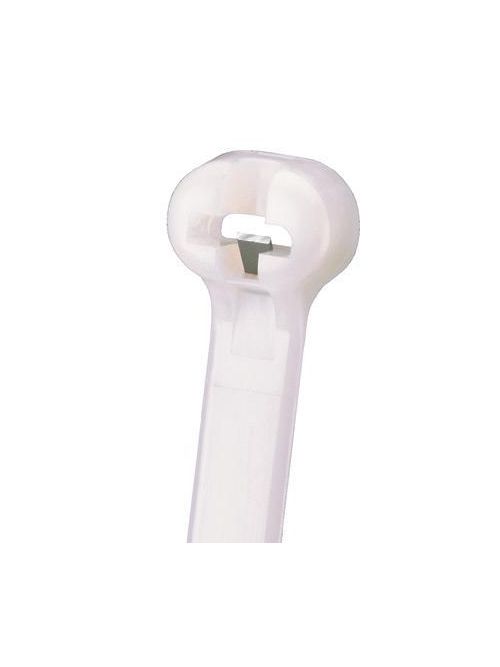

Product Description The BT2S-C Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Standard cross section, 8.0 (203mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
GTiN 00074983411764
Length 8 in
Width 4.7 mm
Color Natural
Type Internal Toothing, Barb Ty, Locking
Thickness 1.1 mm
Material Nylon 6/6
Applications For General use
Country of Origin Costa Rica
Temperature Rating -60 to 85 C
Pkg Qty 100
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 8 in
Standard Packaging Qty 100/Pack
Min Operating Temperature -76 degrees F
Tensile Strength 222 N
Bundle Diameter 51 mm
Sub Brand Dome-Top
CA Prop65 Warning No
