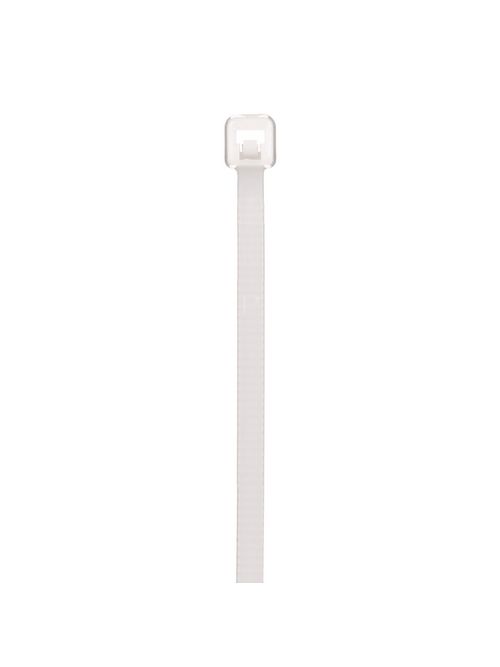

Panduit PLT1M-M 1000/Pack 3.9l 99 mm Miniature Cross Section Nylon Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$56.99/m (1000 ea)
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit Corp
Mfg Catalog # PLT1M-M
World Electric Part # 2126

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Natural
  • Environment: Indoor
  • Sub Brand: Pan-Ty®
  • For Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
  • Material: Nylon 6.6
  • Resistance Properties: NA
  • Maximum Bundle Diameter (mm): 22
  • Maximum Bundle Diameter (In.): 0.87
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Bundle Diameter (mm): 1.5
  • Minimum Bundle Diameter (In.): 0.06
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (lb): 18
  • Minimum Loop Tensile Strength (N): 80
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Overall Length (In.): 3.9
  • Overall Length (mm): 99
  • Body Width (In.): 0.098
  • Body Width (mm): 2.5
  • Body Thickness (In.): 0.043
  • Body Thickness (mm): 1.1
  • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint
  • Military Cross Reference Number: MS3367-4-9

Packaging Details

  • UPC: 07498354047
  • GTIN Package: 00074983540471
  • Standard Package Volume Ft3: 0.0627
  • Standard Package Weight Pounds: 0.8000
  • Std Package Height In: 2.1
  • Std Package Height MM: 53.34
  • Std Package Length In: 10.65
  • Std Package Length MM: 270.51
  • Std Package Width In: 8.2
  • Std Package Width MM: 208.28
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983540476
  • Standard Carton Volume Ft3: 0.0627
  • Standard Carton Weight Pounds: 40.0000
  • Std Carton Height In: 16.65
  • Std Carton Height MM: 422.91
  • Std Carton Length In: 22.05
  • Std Carton Length MM: 270.51
  • Std Carton Width In: 15.15
  • Std Carton Width MM: 384.81
  • Std Ctn Qty: 50000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: SG,CR
  • RoHS Compliant: Compliant
  • EAN: 00074983540471
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 10,000

Overview

UPC 07498354047
Product Description Cable Tie, 3.9L (99mm), Miniature, Nylon, Natural
GTiN 00074983540471
Length 99 mm
Width 2.5 mm
Color Natural
Type Locking
Thickness 1.1 mm
Material Nylon 6/6
Applications For General use
Country of Origin Costa Rica
Pkg Qty 1000
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 3.9 in
Standard Packaging Qty 1000/Pack
Min Operating Temperature -76 degrees F
Tensile Strength 80 N
Bundle Diameter 22.1 mm
Sub Brand Pan-Ty
CA Prop65 Warning No
