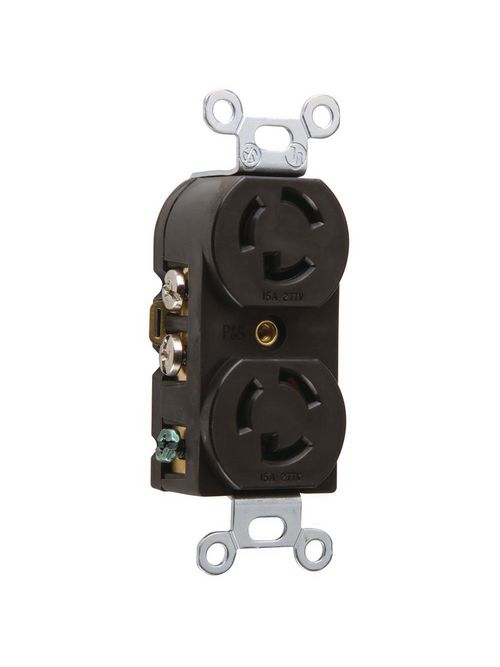

Pass & Seymour 4750 15 Amp 277 VAC 2-Pole 3-Wire NEMA L7-15R Nylon Locking Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$46.79/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 4750
World Electric Part # 1909

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

  • Amperage: 15 A
  • Country Of Origin: MX
  • Standard: UL 498
  • Certifications: UL,CSA
  • NEMA Rating: L7-15R
  • Voltage: 277.0 V
  • Product Line: Pass & Seymour
  • Wire Size: 10-18Awg
  • Number of Wires: 3.0
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Special Features: Compact, impact resistant design, side & external screw pressure plate, face color coding by voltage,

Certifications

  • UL Listed: 140596
  • CSA Listed: 16063

Overview

UPC 78500747500
Product Description Turnlok Receptacle Duplex 15amp 277v
GTiN 00785007475005
Width 1.50 in
Size 4"
Color Black
Voltage 277 Volt
Type Duplex, Receptacles
Material Nylon
Applications Commercial
Depth 1.199 in
Height 3.281 in
Country of Origin Mexico
Wire Size 10-18 Awg
Family Brand Name Pass & Seymour
NEMA L7-15R
Certifications CSA,UL
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121403
Sub Brand Pass & Seymour
