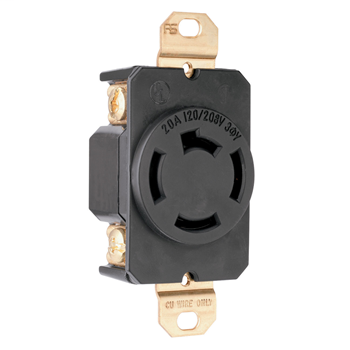

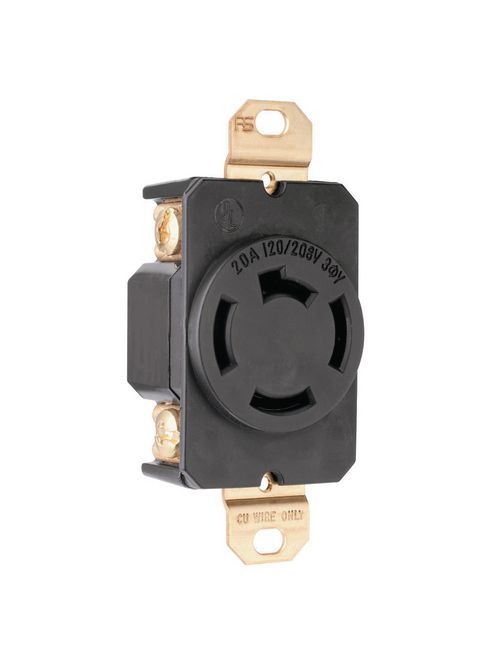

Pass & Seymour 7410 20 Amp 120/208 VAC 3-Phase 3-Pole 4-Wire Non-NEMA Nylon Locking Single Receptacle
$41.79/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 7410
World Electric Part # 789

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

General Info

  • Type: Single Receptacles
  • Number Of Wires: 4
  • Special Features: Non-NEMA

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Depth (US): 1.19"
  • Height (US): 3.28"
  • Width (US): 1.61"

Technical Information

  • Amps: 20A
  • Volts: 120/280V
  • Volts (AC): 120/280

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500789360
Product Description Receptacle 4wire 20amp 120/208volt Turnlok
GTiN 00785007893601
Width 1.61 in
Size 3.3"
Color Black
Voltage 280 Volt
Type Single Receptacles
Material Thermoplastic
Applications Industrial
Depth 1.19 in
Height 3.28 in
Country of Origin Mexico
Wire Size 18-0 AWG
Family Brand Name Pass & Seymour
Certifications UL
Amperage 20 Amp
Number of Poles 3 Pole
Number of Wires 4
UNSPSC 39121403
Sub Brand Pass & Seymour
