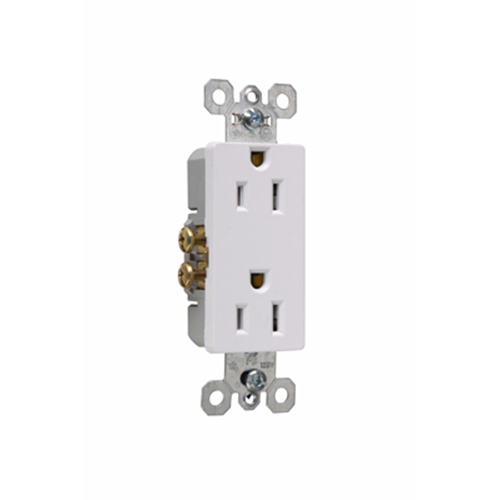

Pass & Seymour 885-SW 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R White Thermoplastic Duplex Decorator Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$323.99/c (100 ea)
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 885-SW
World Electric Part # 1300

Features & Benefits

  • Quickloop wire looping aid.
  • Long-term blade retention.
  • Extra-long strap.
  • Push wire accepts #14 AWG solid only.
  • Self-grounding models provide automatic ground clip.
  • Tri-drive screws.
  • Extra-large circuit break-off tabs.
  • Ultrasonic welding of face to back body.
  • Side wire accepts #12 - #14 AWG solid.
  • Side-access push wire release.
  • High impact-resistant thermoplastic construction.

Specifications

General Info

  • Color: White
  • Number Of Wires: 3
  • Number Of Poles: 2

Buy American Act Compliance

  • Country of Origin: CHINA
  • Buy American Act Status: No

Dimensions

  • Height (U S): 3.31"
  • Width (U S): 1.29"
  • Depth (U S): 1"

Listing Agencies/Third Party Information

  • UL Standard: Yes
  • Federal Spec: No
  • CSA Listing Info: C22.2 No.42
  • UL Listing No: UL498
  • UN SPS C: 39121704
  • CSA Standard: Yes

Technical Information

  • Volts: 125
  • Volts A C: 125
  • Amps: 15A

Available Options

  • TradeMaster Decorator Duplex Receptacle, Ivory
  • TradeMaster Decorator Duplex Receptacle, Light Almond

Resources

Overview

UPC 78500788517
Product Description Sierraplex Receptacle, 15amp 125volt Self-grounded, White
GTiN 00785007885170
Width 1.29 in
Size 4.25"
Color White
Voltage 125 Volt
Type Receptacle
Thickness 1.3"
Material Thermoplastic
Applications Residential/Commercial
Depth 1 in
Height 3.31 in
Country of Origin China
Family Brand Name Pass & Seymour
Certifications CULUS,UL
Amperage 15 Amp
Number of Gangs 2 Gang
Number of Poles 2 Pole
Number of Wires 3
Orientation Vertical
Sub Brand Pass & Seymour
