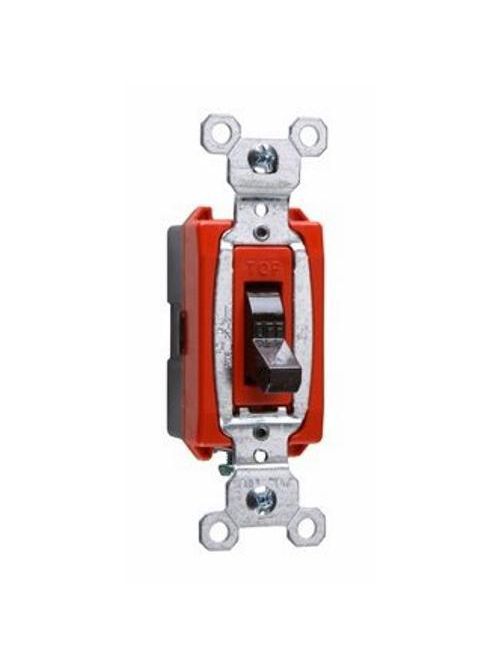

Pass & Seymour CS20AC1 20 Amp 120/277 VAC 1-Pole Brown Glass Reinforced Nylon Screw Mounting Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$4.47/ea
Usually ships within 8 to 12 Days
Not Available at Jacksonville, FL
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # CS20AC1
World Electric Part # 1875

Features

  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Amperage: 20.0 A
  • Actuator: Toggle
  • Certifications: CULUS,FEDSPEC
  • Voltage: 120.0 V
  • Color: Brown
  • Product Line: Pass & Seymour
  • Standard: UL 498/20
  • Action: Single pole
  • Application Sector: Commercial
  • Number of Poles: Single Pole
  • Contact Rating: 20Amp, 120/277Vac
  • Special Features: Side wire, locking support, heavy duty toggle

Certifications

  • cULus Listed: 140597
  • Federal Spec Listed

Overview

UPC 78500712644
Product Description Commercial 1pole Switch, Side Wire, 20amp 120/277volt, Light Almond.
GTiN 00785007126440
Width 1.320 in
Size 3.3 in
Color Brown
Voltage 120 Volt
Type Heavy Duty
Material Nylon
Applications Commercial
Depth 1.073 in
Height 3.281 in
Grade Commercial
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CULUS,FEDSPEC
Actuator Toggle
Duty Rating Heavy Duty
Amperage 20 Amp
Blade Dimensions 3.3 in
Contact Rating 20Amp, 120/277Vac
Number of Poles 1 Pole
Enclosure Nylon
Action Off
UNSPSC 39121507
Sub Brand Pass & Seymour
