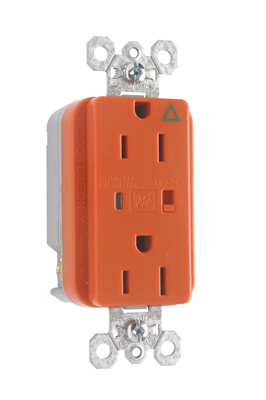

Pass & Seymour IG5262OSP 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Orange Nylon Duplex Isolated Ground Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$81.99/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # IG5262-OSP
World Electric Part # 2077

Features

  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • For covering patents, see www.legrand.us/patents.

Specifications

  • Class: IG
  • Country Of Origin: MX
  • Amperage: 15 A
  • Certifications: CULUS
  • Color: Orange
  • Voltage: 125.0 V
  • Product Line: Pass & Seymour
  • Application Sector: Commercial
  • Connection: Back and side wire
  • Environmental Conditions: Flammability: UL94 V2
  • Standard: cUL UL1449, UL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
  • Special Features: IG symbol and Isolated Ground markings for easy identification and circuit delineation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.

Certifications

  • cULus Listed: 140596

Overview

UPC 78500719482
Product Description Isolated Ground Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 15amp 125volt, Gray.
GTiN 00785007194821
Width 1.750 in
Size 1.70 L x 1.25 W x 3.75 H In
Color Orange
Voltage 125 Volt
Type Duplex
Material Nylon
Applications Commercial
Depth 1.225 in
Height 3.82 in
Grade Specification
Country of Origin Mexico
Wire Size 14-10 AWG
Wattage Electrical power is expressed in Amps and Volts.
Temperature Rating Operating Temperature: -20C to +55C (-4F to 131F), Storage Temperature: -40C to +85C (-40F to 185F)
Family Brand Name Pass & Seymour
Certifications CULUS
Buy American Compliant No
TC Connection Back and side wire
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
