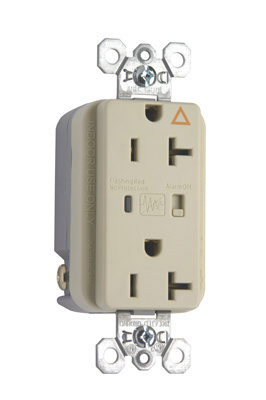

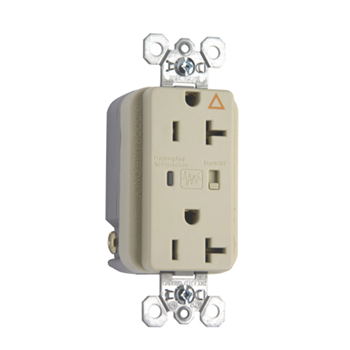

Pass & Seymour IG5362ISP 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Ivory Nylon Duplex Isolated Ground Receptacle

Features

• Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
• LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
• Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
• Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
• Triple-wipe, copper-alloy contacts for superior, more dependable connection.
• External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw.
• Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
• Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
• For covering patents, see www.legrand.us/patents.

Specifications

• Country Of Origin: MX
• Standard: cUL UL1449, UL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
• Certifications: CULUS
• Class: IG
• Amperage: 20 A
• Color: Ivory
• Product Line: Pass & Seymour
• Voltage: 125.0 V
• Application Sector: Commercial
• Connection: Back and side wire
• Environmental Conditions: Flammability: UL94 V2
• Special Features: IG symbol and Isolated Ground markings for easy identification and circuit delineation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.

Certifications

• cULus Listed: 140596
