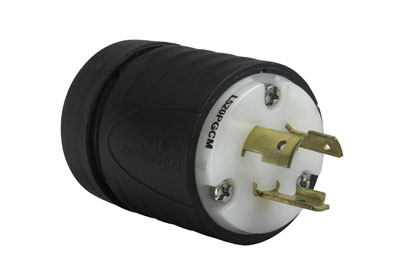

Pass & Seymour L520-PGCM 20 Amp 125 VAC 2-Pole 3-Wire NEMA L5-20P Black and White Nylon Straight Locking Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$37.79/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L520-PGCM
World Electric Part # 1841

Features

  • Integral indication of ground continuity and power status. Continuous monitoring enhances personnel safety and adds convenience.
  • Dual, bright LED indicators with 360: visibility. Green LEDs indicate proper ground continuity and power status. Red LEDs indicate ground continuity loss or reversed polarity. No LED indicates open hot, open neutral, or hot to ground cross. For 250V configurations: Hot to ground cross will be indicated by a green and red LED.
  • NEMA configurations always visible for fast identification without disconnecting.
  • Exclusive neoprene dust shield on devices seals cable entry. Optional weatherproof boots (sold separately).
  • Chemical- and impact-resistant nylon housing features horizontal, easy grip ribs on back body.
  • Exclusive, rugged two-piece cord grip (15 Amp only) accepts a wide range of cord widths. Provides uniform pressure for superior retention of conductors.
  • Recessed cord-grip screw reduces screwdriver slippage, improves safety. Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire.
  • Color-coded terminal screws are backed-out for fast installation.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.

Specifications

  • Phase: 3
  • Country Of Origin: MX
  • Amperage: 20 A
  • Certifications: CULUS,FEDSPEC
  • Type: Plug Tail
  • Color: Black
  • Standard: UL Listed
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Number of Wires: 3.0
  • Application Sector: Industrial
  • Number of Poles: Double Pole
  • Special Features: Locking industrial spec grade turnlock

Certifications

  • cULus Listed: 146159
  • Federal Spec Listed

Overview

UPC 78500726549
Product Description TURNLOK PLUG 3W 20A 125V
GTiN 00785007265491
Length 3.75 in
Size 4.5x3.3x2.7
Color Black
Voltage 125 Volt
Type Turn-Lock, Industrial Specification Grade, Heavy Duty
Diameter 2.20 in
Material Nylon/Rubber
Applications For Industrial Use
Country of Origin Mexico
Family Brand Name Pass & Seymour
NEMA L5-20P
Certifications CULUS,FEDSPEC
Duty Rating Heavy Duty
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Pass & Seymour
Mounting Type Round Portable Service Cord
Blade Dimensions 4.5 x 3.3 x 2.7 in
Number of Phases 3 Phase
