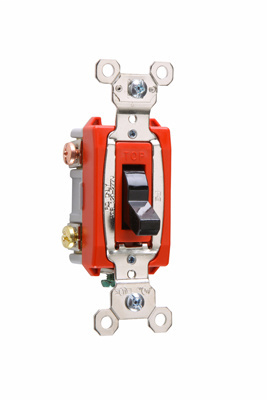

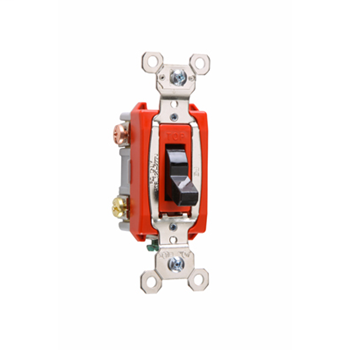

Pass & Seymour PS20AC2-BK 20 Amp 120/277 VAC 2-Pole Black Glass Reinforced Nylon Screw Mounting Toggle Switch
$28.79/ea
Usually available within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # PS20AC2-BK
World Electric Part # 851

Features

  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast "make" and positive "break" to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of istallation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Black
  • Type: Toggle
  • Duty: Extra Heavy Duty
  • Number Of Poles: 2

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 111
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 20
  • UL Standard: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.073"
  • Height (US): 3.281"
  • Width (US): 1.320"

Technical Information

  • Amps: 20A
  • Volts: 120/277VAC
  • Volts (AC): 120/277
  • Grade Type: Industrial

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500719530
Product Description 2pole Toggle Switch, Back & Side Wire, 20amp 120/277volt, Black
GTiN 00785007195309
Width 1.320 in
Size 3.3"
Color Black
Voltage 120 Volt
Type Toggle
Applications Industrial
Depth 1.073 in
Height 3.281 in
Grade Industrial
Country of Origin Mexico
Wattage 2 Watt
Family Brand Name Pass & Seymour
Certifications FEDSPEC,CULUS
Actuator Toggle
Duty Rating Extra Heavy Duty
Amperage 20 Amp
Blade Dimensions 3.3 in
Contact Rating 20amp, 120/277vac
Number of Poles 2 Pole
UNSPSC 39121507
Sub Brand Pass & Seymour
